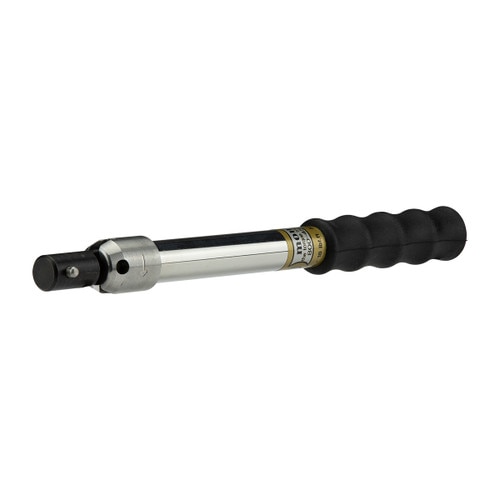

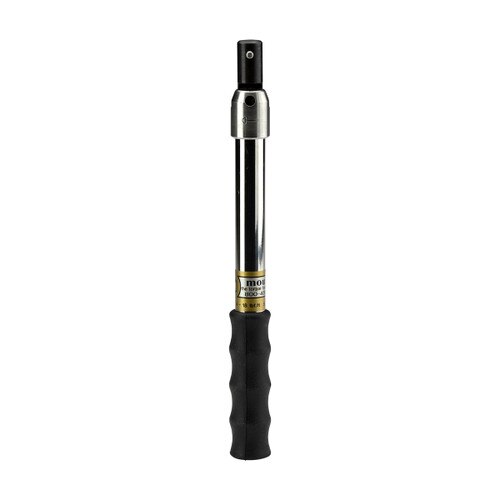

MTBN25 Preset Break-Over Wrench

Item #: 020491
$428.00
In Stock
The MTBN is a preset production torque wrench with flexibility to adapt to different fastening applications as it is com READ MORE

Calibration Options For This Product:

Add Calibration Service — $20.00

Preset Value is required

Torque Unit is required

Add Calibration Certificate

Time Interval is required

Item(s) successfully added to your cart.

F
T
T
Model:
MTBN25
Item #:
020491
Drive Size:
16mm Spigot
American:
44 - 221 lbf.in
S.I.:
5 - 25 N.m
Metric:
51 - 255 kgf.cm
Tool Weight:
14.3 oz.
Tool Length:
10.4
Break:
20°
The MTBN is a preset production torque wrench with flexibility to adapt to different fastening applications as it is compatible with different head options. The unique break-over mechanism, provides an operator ample time to react once the target torque is reached and to stop applying any additional force to the fastener. Break-over torque wrenches improve control of the fastening process by reducing the risk of both over and under tightening.
The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789 (+/- 4% of indicated setting).
  • A preset production torque wrench with flexibility to adapt to different applications with ability to change different head options. Breaks over upon reaching preset torque and reset automatically.
  • Tamper-proof internal adjustment. No external adjustment scale - must be preset using a torque analyzer.
  • All models are are fitted with double positive torque adjustment locking system to prevent tampering.
  • Compact and well balanced. Ideal for use in restricted areas.
  • Interchangeable Heads for all models are available.
  • MTBN2 & MTBN10 are ESD compliant.
MTBN 25, 65, 135 models operate in single direction (clockwise).
The flexible MTBN wrench can adapt to a variety interchangeable head fittings.

Head options for wrenches with 16mm Spigot end fittings (MTBN 25, 65, 135, 200 models)Open End
