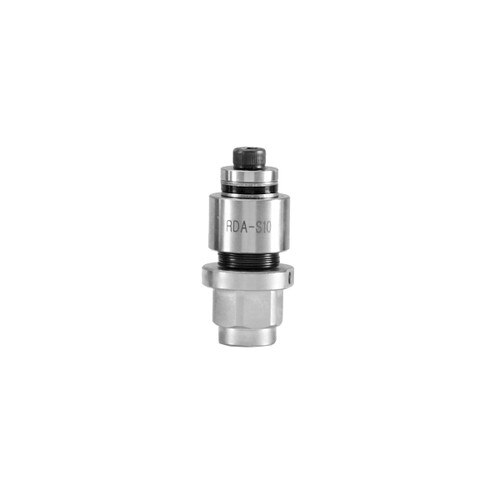

RDA-S10 Run Down Adapter

Item #: 070835
$365.00
In Stock

The run down adapter is designed to provide run down simulation for a “soft joint” application. This device provides READ MORE

Specs

Model:
RDA-S10
Item #:
070835
American:
1 - 6.1 lbf.in
S.I.:
11.3 - 68.6 cN.m
Input Drive:
4mm Hex
Output Drive:
17mm Hex

The run down adapter is designed to provide run down simulation for a “soft joint” application. This device provides consistent and reliable torque readings for use with power-driven torque control tools. The RDA reduces the impact and irregular peaks that cause poor repeatability. The run down adapter is mounted in-line between the tool drive and transducer.

The RDA model is supplied with 5 replacement screws. Using the screw for more than the recommended cycles may cause erratic test results. The screw is estimated to be replaced after 80 run down cycles. Download the manual.

    • The unit is designed to provide run down simulation for a ‘soft joint’ application.
    • Designed to provide consistent and reliable torque readings for use with power-driven torque control tools.
    • The adapter is mounted inline between the tool's drive and the EZ-TorQ's transducer.
    • Compact size and lightweight.
    • Operates in a clockwise direction only. After each run down, the RDA should be completely backed-up.
    • Compatible with only the EZ-TorQ III analyzer.

The RDA model is supplied with five replacement screws. Using the screw for more than the recommended cycles may cause erratic test results. The screw is estimated to be replaced after 80 run down cycles. Download the manual.
