STC40 Transformer

Item #: 145754
$285.00
The STC40 is a power supply that operates with select Mountz electric screwdrivers. It is single tool controller that is READ MORE
Model:
STC40
Item #:
145754
Tool Weight:
1.8 lbs.
Tool Length:
7.5
Tool Width:
4.375
Tool Height:
2.375
Maximum Output:
10A
Output VDC:
30/40V
Input VAC:
110/230V

Product Details

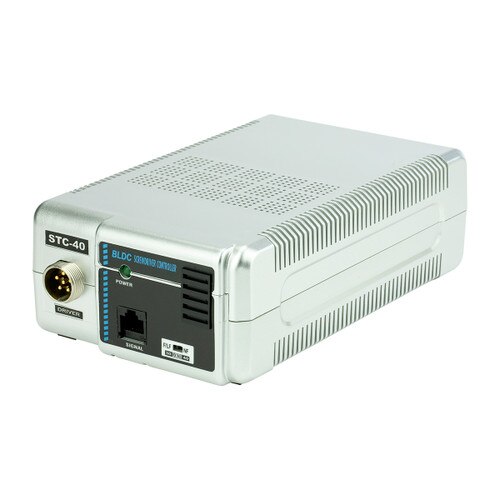

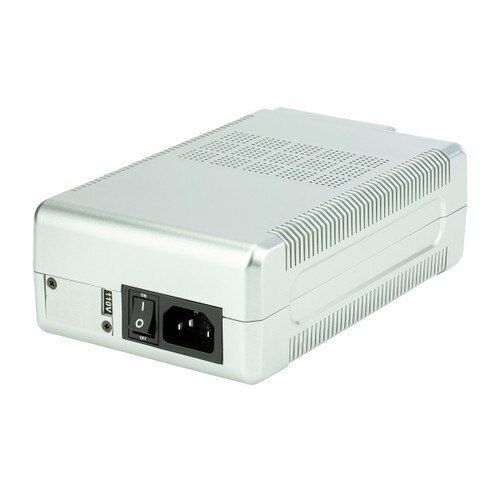

The STC40 is a power supply that operates with select Mountz electric screwdrivers. It is single tool controller that is designed to operate at either 110v and 230v. The unit is can connect with the Scout screw counting system.

Product Benefits

    • Selectable output voltage
    • Over Heat Protection (OHP) and Over Current Protection (OCP) protect driver from damage or malfunction.
    • Temperature Detection powers down the unit and resets automatically when unit restores to acceptable levels.
    • Switchable 110V & 230V input voltage. Unit will reset itself if motor/current overload is too high
    • Start & Stop Signal Output (for PLC).
    • Screwdriver Lock Signal Input (for PLC).
    • Unit can be connected to the Scout Screw Counter.
Operates with Electric Screwdriver Models:  LF-SeriesBF-Series and NF-Series.

The program lock key is required for the BF and NF-Series Standard models and Soft Stop models. RPM & Soft Start Settings can not be adjusted without it.

The program lock key can not be used with Plus models of BF, NF-Series and Soft Stop models and Angle & Auto Reverse models.
