Legacy Product
This product has been replaced by: FG-25z Preset Torque Screwdriver

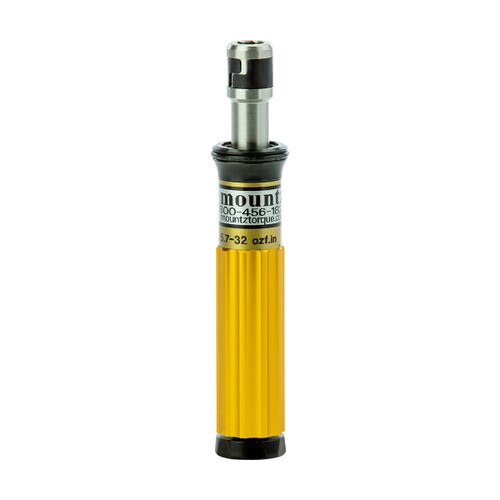

Minimaster TLS0022 Preset Torque Screwdriver FH

Item #: 020074
The TLS0022 preset torque screwdriver product has been discontinued. You can access supporting product information from READ MORE

Specs

Model:
Minimaster
Item #:
020074
Drive Size:
1/4" F/Hex
American:
5.7 - 32 ozf.in
S.I.:
4 - 22 cN.m
Metric:
0.4 - 2.2 kgf.cm
Tool Weight:
2.5 oz.
Tool Length:
4.1
Handle Color:
Gold
The TLS0022 preset torque screwdriver product has been discontinued. You can access supporting product information from this page.
The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789 (+/- 6% of indicated setting).
  • Preset torque limiting screwdriver (internally adjustable).
  • Thrust bearings insure that the torque setting is independent of any end load applied by the operator.
  • Tamper-proof internal adjustment. No external adjustment scale - must be preset using a torque analyzer.
  • Precision radial ball clutch "slips-free" when the preset torque is reached preventing over-torquing.
  • Bi-directional operation and is calibrated in either the CW or CCW direction.
