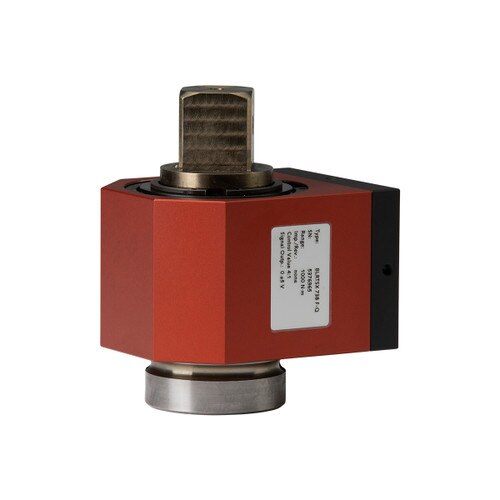

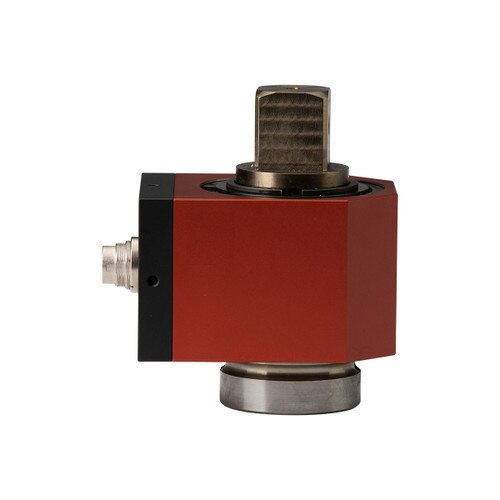

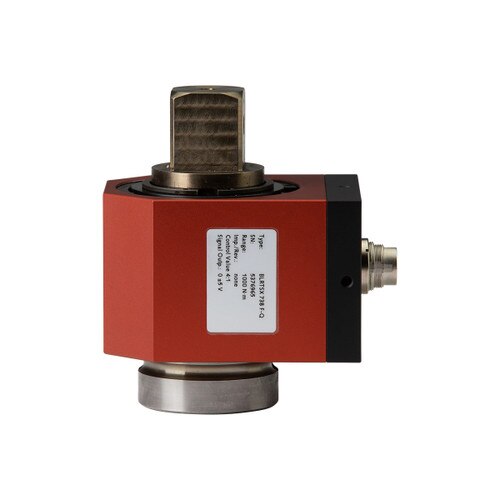

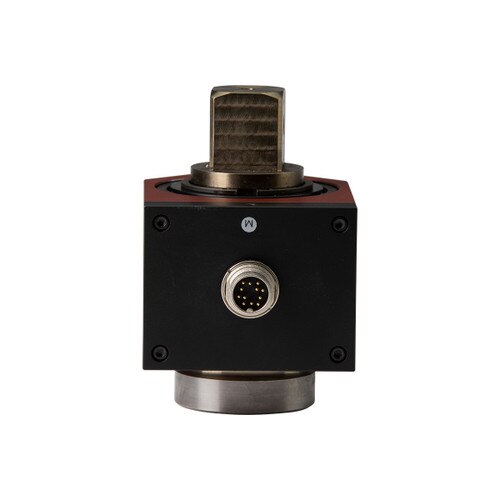

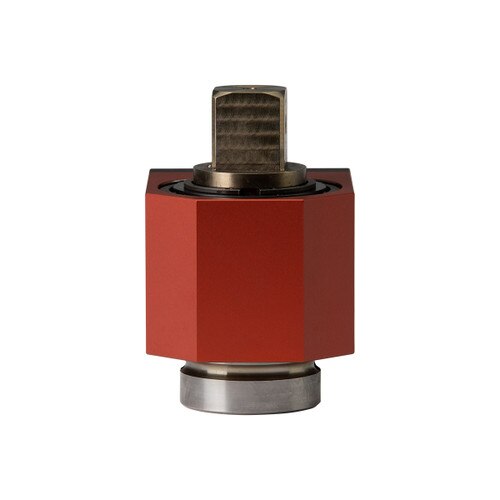

BLRTSX738F-A Rotary Torque Sensor

Item #: 170259
Certifications:
$9,680.00

Please contact customer service for current lead time status, call 408-684-1442.

The Mountz brushless rotary torque & angle sensors an ideal torque-measuring solution for applications where accuracy an READ MORE
NOTE: Requires Companion Items View

Calibration Options For This Product:

Add Calibration Certificate — $.00

Time Interval is required

Item(s) successfully added to your cart.

T
F
T

Required Companion Items:

Cable BLRTSX to PTT and LTT
Item #072001
$435.00
Item(s) successfully added to your cart.

Specs

Model:
BLRTSX738F-A
Item #:
170259
American:
74 - 738 lbf.ft
S.I.:
100 - 1000 N.m
Metric:
10.2 - 102.1 kgf.m
Input Drive:
1 F/Sq
Output Drive:
1 M/Sq
Tool Length:
7
Tool Width:
2.9
Tool Height:
3.5
Cal Cert Options Data Set:
Supplied with a Free ISO 17025 Certification of Calibration
The Mountz brushless rotary torque & angle sensors an ideal torque-measuring solution for applications where accuracy and reliability rank paramount. Can be used for testing real-time torque or for checking the breakaway torque (first movement) of a fastener.
Accuracy ± .2% of full scale

Accessories

Torque Analyzers
PTT
LTT

Cables for connecting BLRTSX-A to Torque Analyzers
PTT
LTT

  • Non-contact signal transfer and maintenance free.
  • Angle Output: 2-channel quadrature, 360 pulses per rotation.
  • Ability to measure the rotation angle of a fastener. Joint rate & breakaway torque can be measured too.
  • The common brush bounce that plagues the accuracy testing of pulse tools is cured when using a brushless rotary transducer.
  • Compact design & bi-directional.
  • For use with most power tools, high RPM tools, or rotational measurement applications.
  • Features ARCII technology, an instant auto-recognition system of the BLRTSX-A connected to the PTT or LTT.
This is the stand alone accuracy statement for the BLRTSX -A torque sensor. When the torque sensor is coupled with a Mountz torque analyzer, there is a system accuracy. Review the system accuracy listed with each torque analyzer (PTT or LTT).

WARNING! Not recommended for impact wrenches.
