CLT-70STC3 Screw Counter Transformer

Item #: 144296
$1,375.00

  • For lead time information, please contact customer experience & sales. For further information, call 408-684-1442 or Contact Us

    • The CLT-70STC3 is a power supply that operates with select Mountz electric screwdrivers. It is a single tool controller READ MORE

    Specs

    Model:
    CLT-70STC3
    Item #:
    144296
    Tool Weight:
    3.5 lbs.
    Tool Length:
    7.5
    Tool Width:
    4.75
    Tool Height:
    2.75
    Rated Output:
    3A
    Maximum Output:
    4.5A
    Output VDC:
    20/30V
    Input VAC:
    100-240V
    Fuse Size:
    3A

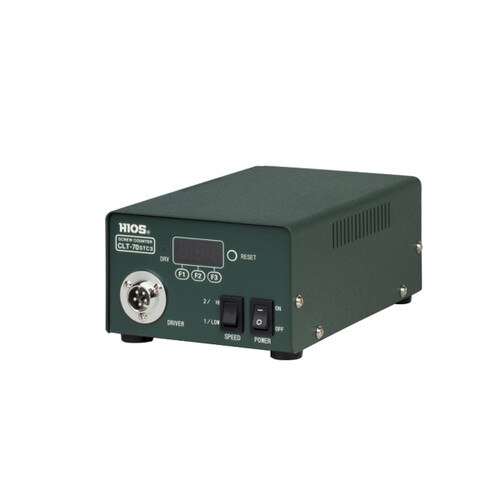

    The CLT-70STC3 is a power supply that operates with select Mountz electric screwdrivers. It is a single tool controller with a built-in screw counter. The quality control device provides visual assembly fastener count and audible reject alarm. Detects - cross-threading, omissions, unfinished rundowns, and cycle complete.

      • Operates with select HIOS electric screwdriver models
      • The unit has a built-in screw counter
      • Visual assembly fastener count Detects - cross-threading, omissions, unfinished rundowns and cycle complete
      • A buzzer will sound when the final screw has been tightened to notify you of screw tightening completion
      • Outputs for machine & PLC interface for line control
      • Switching power supply 100 - 240V
    Operates with Electric Screwdriver Models: CL2000-7000, SS2000-7000 and A4500-6500
