Legacy Product
This product has been replaced by: LTS-15 Linear Torque Arm

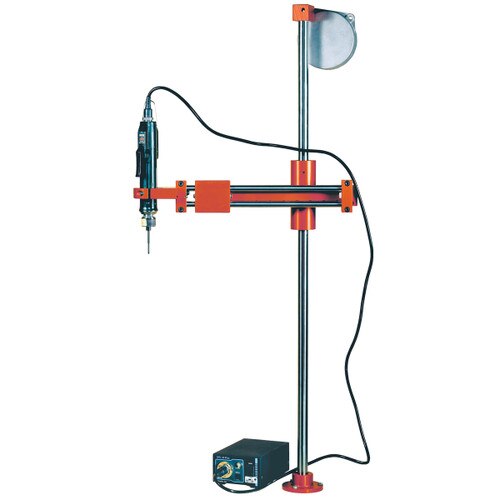

EZ-12 Linear Torque Arm

Item #: 260077

This linear torque arm product has been discontinued and replaced with a new linear torque arm design. You can acces READ MORE

Specs

Model:
EZ-12
Item #:
260077
American:
- 8.8 lbf.ft
S.I.:
- 12 N.m
Metric:
- 1.2 kgf.m
Tool Height:
32.5
Clamp Color:
1 - 1 1/2"
Minimum Arm Reach:
16 1/2"
Maximum Arm Reach:
22"
Balancer Weight Capacity:
1.1 - 2.6 lbs

This linear torque arm product has been discontinued and replaced with a new linear torque arm design. You can access supporting product information from this page.

    • Providing ergonomic solutions for your assembly line workers lessens fatigue, prevents injuries, and boosts productivity.
    • Maneuvers smoothly as the ergonomic torque arm absorbs the torque reaction emitted from power tools
    • Reduces RMI (Repetitive Motion Injury) and CTS (Carpal Tunnel Syndrome) while boosting production.
    • Prevents cross threading and sideload — keeps tool perpendicular.
    • It extends in a horizontal direction and arm length is adjustable.
    • Maneuvers smoothly as the torque arm cylinder has four rows of ball bearings for smooth movement.
    • A magnet on the backside of the tool clamp holds the driver firmly against the arm.
    • Includes an in-line driver clamp.
