Legacy Product

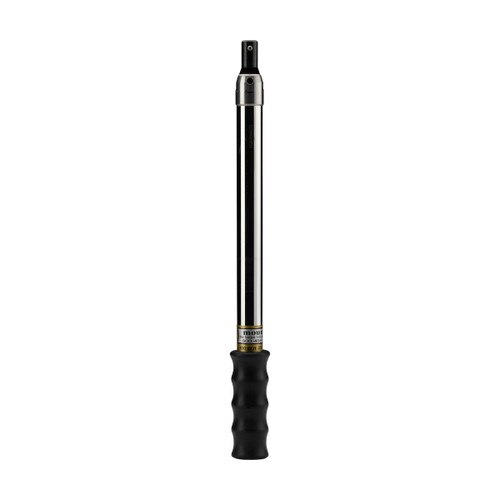

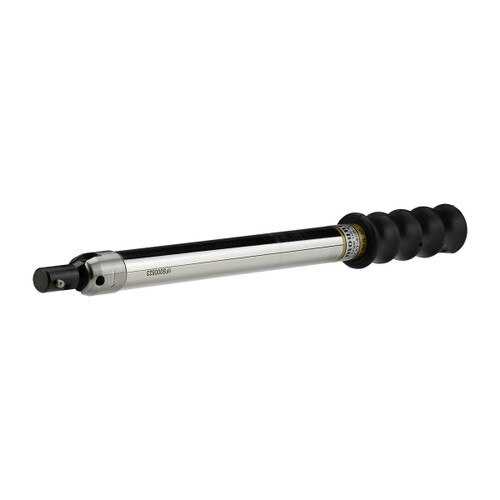

MTBN135 Preset Break-Over Wrench

Item #: 020632
The MTBN135 break-over wrench product has been discontinued. You can access supporting product information from this pag READ MORE
Model:
MTBN135
Item #:
020632
Drive Size:
16mm Spigot
American:
177 - 1194 lbf.in
S.I.:
20 - 135 N.m
Metric:
204 - 1377 kgf.cm
Tool Weight:
36.4 oz.
Tool Length:
16.1
Break:
20°
The MTBN135 break-over wrench product has been discontinued. You can access supporting product information from this page.
The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789 (+/- 4% of indicated setting).
  • A preset production torque wrench with the flexibility to adapt to different applications with the ability to change different head options. Breaks over upon reaching preset torque and reset automatically.
  • Tamper-proof internal adjustment. No external adjustment scale - must be preset using a torque analyzer.
  • All models are fitted with a double-positive torque adjustment locking system to prevent tampering.
  • Compact and well balanced. Ideal for use in restricted areas.
  • Interchangeable Heads for all models are available.
MTBN135 model operates in a single direction (clockwise).
The flexible MTBN wrench can adapt to a variety interchangeable head fittings.

Head options for wrenches with 16mm Spigot end fittings (MTBN 25, 65, 135, 200 models)Open End
