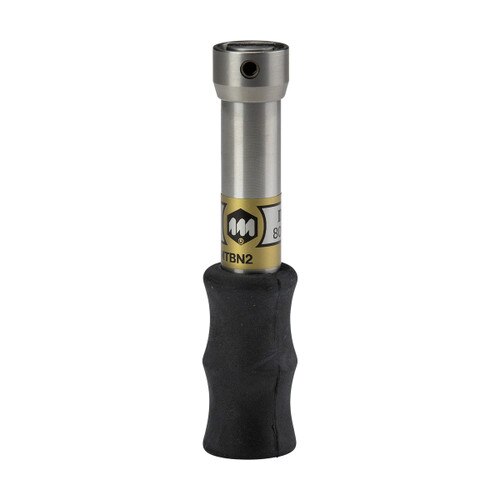

MTBN2 Preset Break-Over Wrench

Item #: 020314
$336.00
The MTBN2 is a preset production torque wrench with flexibility to adapt to different fastening applications as it is co READ MORE
Model:
MTBN2
Item #:
020314
Drive Size:
Captive Pin
American:
1.8 - 18 lbf.in
S.I.:
0.2 - 2 N.m
Metric:
2 - 20 kgf.cm
Tool Weight:
3.9 oz.
Tool Length:
4.1
Break:
20° or 90°

Item(s) successfully added to your cart.

Please select your calibration option below before adding to cart

Add Calibration Service — $20.00

Please select an option:
  ADD SERVICE
  NO SERVICE NEEDED

Preset Value is required

Torque Unit is required

Add Calibration Certificate

Please select an option:
  ADD CERTIFICATE
  NO CERTIFICATE NEEDED

Time Interval is required

F
T
T

Product Details

The MTBN2 is a preset production torque wrench with flexibility to adapt to different fastening applications as it is compatible with different head options. The unique break-over mechanism, provides an operator ample time to react once the target torque is reached and to stop applying any additional force to the fastener. Break-over torque wrenches improve control of the fastening process by reducing the risk of both over and under tightening.
The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789 (+/- 6% of indicated setting).

Product Benefits

  • A preset production torque wrench with flexibility to adapt to different applications with ability to change different head options. Breaks over upon reaching preset torque and reset automatically.
  • Tamper-proof internal adjustment. No external adjustment scale - must be preset using a torque analyzer.
  • All models are are fitted with double positive torque adjustment locking system to prevent tampering.
  • Compact and well balanced. Ideal for use in restricted areas.
  • Interchangeable Heads for all models are available.
  • MTBN2 & MTBN10 are ESD compliant.
