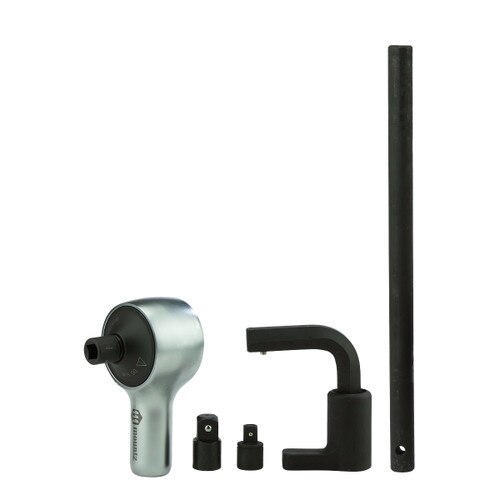

MTM-15 Manual Torque Multiplier

Item #: 215026
$825.00
In Stock
The manual torque multiplier is a low cost solution that's ideal for wheel nuts and remote locations where air and elect READ MORE

Calibration Options For This Product:

Add Calibration Certificate — $125.00

Time Interval is required

Item(s) successfully added to your cart.

T
F
T

Specs

Model:
MTM-15
Item #:
215026
American:
170 - 1105 lbf.ft
S.I.:
231 - 1500 N.m
Metric:
23.6 - 153 kgf.m
Input Drive:
1/2 F/Sq
Output Drive:
3/4 M/Sq
Tool Weight:
5.7 lbs.
Tool Length:
6.33
Tool Height:
3.875
Torque Multiplication:
6.5:1
The manual torque multiplier is a low cost solution that's ideal for wheel nuts and remote locations where air and electricity aren’t easily accessible. The gearing design allows for a high torque output with minimal input. Commonly used in petrochemical, power generation, transportation, shipping and maintenance industries.
Accuracy better than ± 5%

Related Products

  • Precision tightening for heavy duty fastening connections.
  • Commonly used in construction, heavy equipment and power generation industries.
  • Portable, compact and lightweight.
  • Constructed with quality steel and matted finish.
  • Torque Multiplication Ratio - low energy input with high torque output.
  • For operation in combination with a torque wrench.
  • Ideal for remote locations where no source of power is available.
  • Includes plastic case.
Note! MTM can be used with straight reaction bar or right angle reaction bar.
