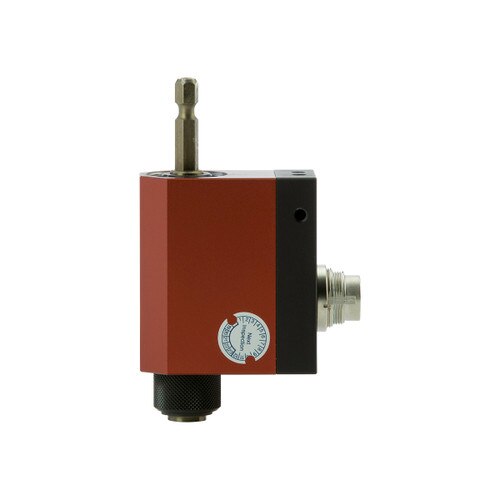

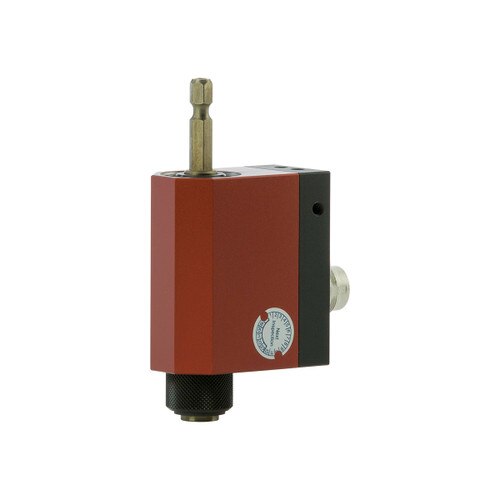

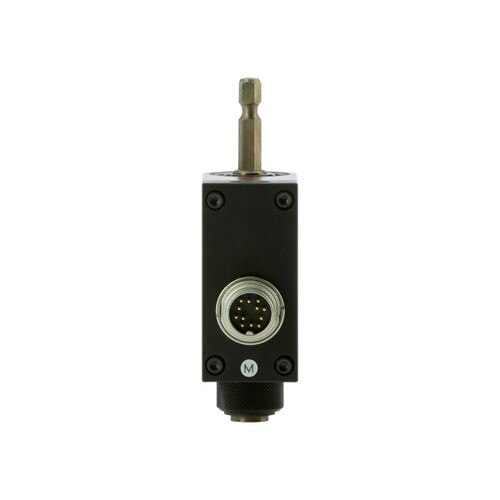

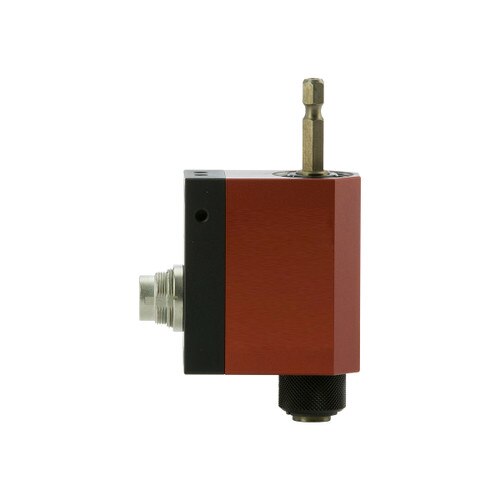

RTSX100i-HA Rotary Torque Sensor

Item #: 170217
$4,500.00

This tool typically ships within 7 - 9 weeks. For further information, call 408-684-1442.

The Rotary Torque & Angle Sensor is the ideal torque-auditing tool for testing the actual torque being applied on the as READ MORE
Model:
RTSX100i-HA
Item #:
170217
American:
10 - 100 lbf.in
S.I.:
113 - 1130 cN.m
Metric:
11.5 - 115 kgf.cm
Input Drive:
1/4 M/Hex
Output Drive:
1/4 F/Hex
Tool Length:
4
Tool Width:
1.1
Tool Height:
2
Cal Cert Options Data Set:
Supplied with a Free ISO 17025 Certification of Calibration

Item(s) successfully added to your cart.

Please select your calibration option below before adding to cart

Add Calibration Certificate — $0.00

Please select an option:
  ADD CERTIFICATE
  NO CERTIFICATE NEEDED

Time Interval is required

T
F
T

You will also need

Item #072000
$325.00
Item(s) successfully added to your cart.

Product Details

The Rotary Torque & Angle Sensor is the ideal torque-auditing tool for testing the actual torque being applied on the assembly application. By connecting a rotary torque sensor between an electric or pneumatic tool and assembly application, you can monitor the torque being applied from the tool to fastener or bolt.
Accuracy ± .25% of full scale

Product Benefits

  • Ability to measure the rotation angle of a fastener. Joint rate & breakaway torque can be measured too.
  • Angle output: 2-channel quadrature, 360 pulses per rotation.
  • Bi-directional.
  • For use with most power tools and rotational measurement applications.
  • Features ARC II technology, an instant auto-recognition system of the RTSX-A connected to the PTT and LTT.
This is the stand alone accuracy statement for the RTSX-A torque sensor. When the torque sensor is coupled with a Mountz torque analyzer, there is a system accuracy. Review the system accuracy listed with each torque analyzer (PTT or LTT).

WARNING! Not recommended for impact wrenches.
