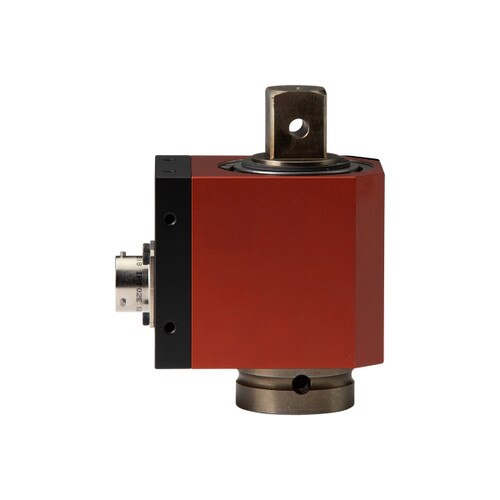

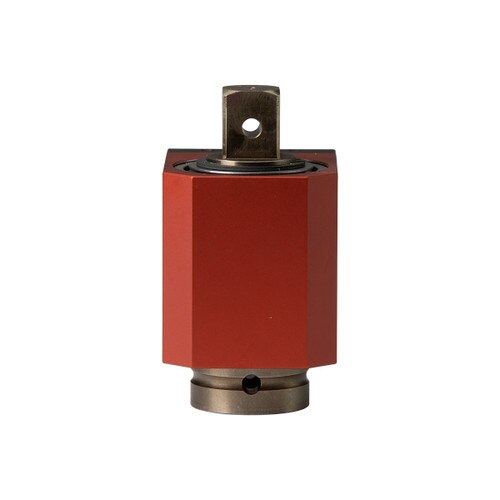

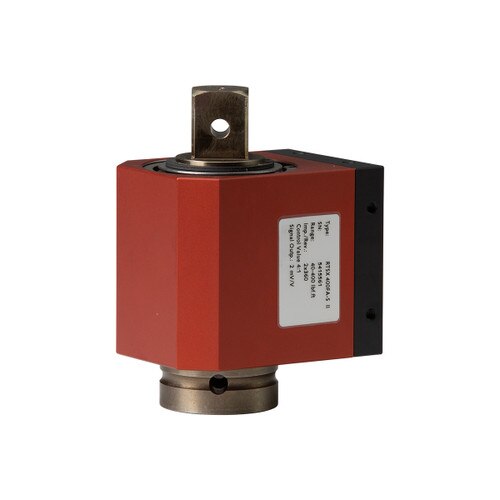

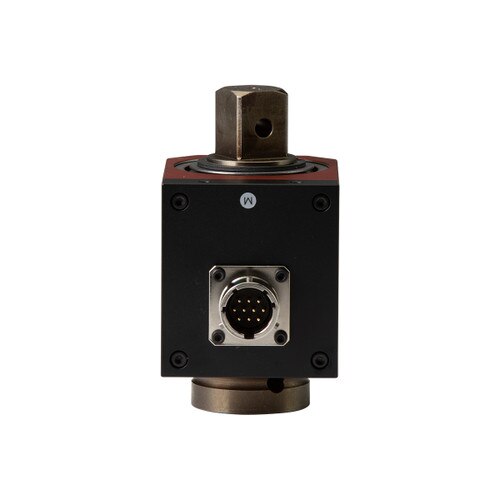

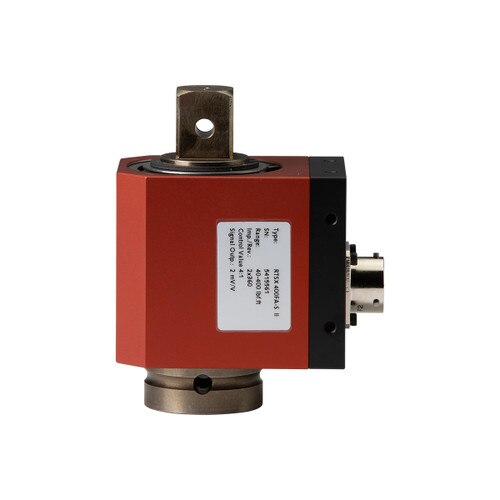

RTSX400F-A Rotary Torque Sensor
Item #: 170223
Calibration Options For This Product:
Add Calibration Certificate — $0.00
Time Interval is required
Required Companion Items:
40 - 400 lbf.ft
54.2 - 542.4 N.m
5.5 - 55.2 kgf.m
Cal Cert Options Data Set:
Supplied with a Free ISO 17025 Certification of Calibration
The Rotary Torque & Angle Sensor is the ideal torque-auditing tool for testing the actual torque being applied on the assembly application. By connecting a rotary torque sensor between an electric or pneumatic tool and assembly application, you can monitor the torque being applied from the tool to fastener or bolt.
Accuracy ± .25% of full scale
- Ability to measure the rotation angle of a fastener. Joint rate & breakaway torque can be measured too.
- Angle output: 2-channel quadrature, 360 pulses per rotation.
- For use with most power tools and rotational measurement applications.
- Features ARC II technology, an instant auto-recognition system of the RTSX-A connected to the PTT and LTT.
