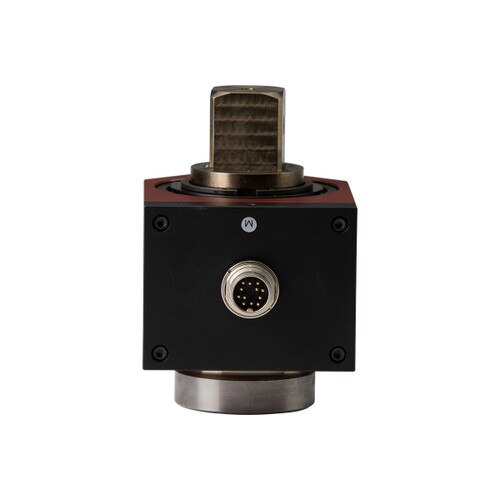

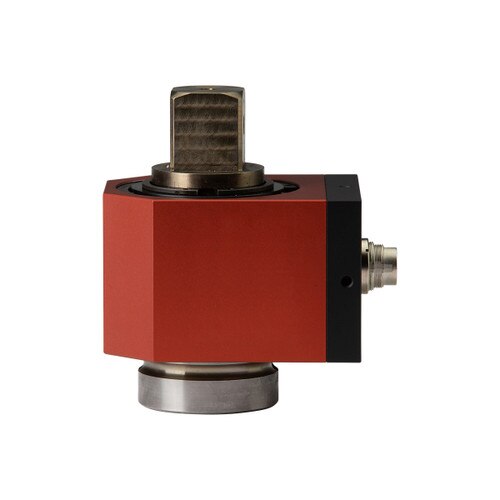

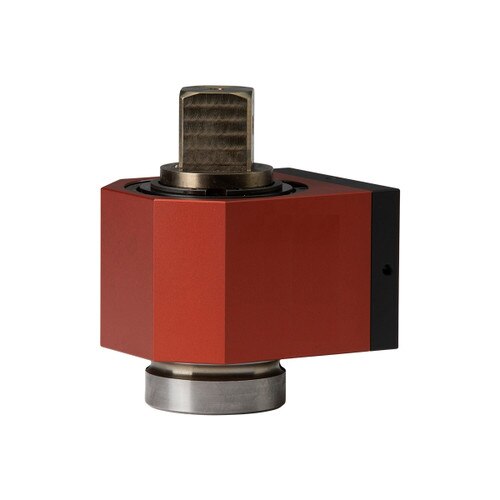

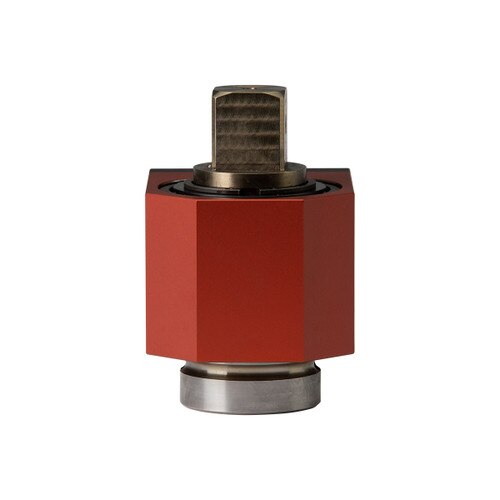

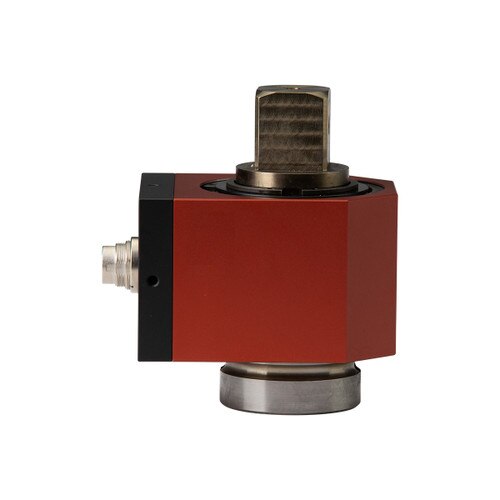

RTSX800F-A Rotary Torque & Angle Sensor

Item #: 170224
Certifications:
$6,390.00

Please contact customer service for current lead time status, call 408-684-1442.

The rotary torque and angle sensor is an instrument for measuring dynamic torque in fastening applications. When pair READ MORE

NOTE: Requires Companion Items View

Calibration Options For This Product:

Add Calibration Certificate — $.00

Time Interval is required

Item(s) successfully added to your cart.

T
F
T

Required Companion Items:

Cable RTSX-A to PTT and LTT
Item #072000
$435.00
Item(s) successfully added to your cart.

Specs

Model:
RTSX800F-A
Item #:
170224
American:
80 - 800 lbf.ft
S.I.:
108.4 - 1084 N.m
Metric:
11 - 110.4 kgf.m
Input Drive:
1 F/Sq
Output Drive:
1 M/Sq
Tool Length:
7
Tool Width:
2.9
Tool Height:
3.5
Cal Cert Options Data Set:
Supplied with a Free ISO 17025 Certification of Calibration

The rotary torque and angle sensor is an instrument for measuring dynamic torque in fastening applications. When paired with a torque analyzer, the rotary torque sensor is ideal for torque auditing programs and verification processes. Angle monitoring sensors can be used to measure the rotation angle, joint rate, and breakaway torque directly on the fastener.

Connect a rotary torque sensor between an electric or pneumatic tool and the assembly application. The sensor quickly attaches to a power tool's drive without interfering with its ability to fasten a screw or bolt. The sensor measures torque under joint conditions, returning the most accurate results possible. The sensor is also compatible with measuring hand tools like torque wrenches and screwdrivers.

The sensor must be used with a torque analyzer and easily connect to Mountz LTT and PTT torque analyzers via cable using plug-and-play ARC II technology.

Torque Sensor Accuracy
System Accuracy ± 0.5% of reading from 20% to 100% when connected to an LTT or PTT
System Accuracy ± 1% of reading from 10% to 20% when connected to an LTT or PTT

Accessories

Torque Analyzers
PTT
LTT

Cables for connecting RTSX-A to Torque Analyzers
PTT
LTT

Related Products

    Measuring Torque for Quality Control:

    • The torque and angle sensor tests and measures dynamic torque for power assembly tools with fastening applications. It is also compatible with measuring hand tools like torque wrenches and screwdrivers. Using this sensor ensures proper torque is applied and reduces manufacturing errors on your assembly line.
    • The sensor has encoders for measuring the rotation angle when a fastener is turned (Angle output: 2-channel quadrature, 360 pulses per rotation).
    • The sensor is attached to the power tool's drive without interfering with the tool's ability to fasten a screw or bolt. Measuring the torque output of a tool with a rotary torque sensor allows you to monitor torque being applied from the tool to the fastener or bolt and analyze the efficiency of the fastening process. It is ideal for torque auditing or torque verification programs.
    • Validate that a tool is still in calibration with a torque verification process.
    • For a torque auditing program, a rotary torque sensor is used in the testing process to detect loose fasteners or any signs of joint relaxation. The joint rate and breakaway torque can also be measured.
    • Features ARC II technology, an instant auto-recognition system of the RTSX-A connected to the PTT or LTT torque testers.
      Easily connect up to 4 torque sensors using the Mountz multiplexer.


    Mountz Quality Standards:

    • ISO 17025 calibration certificate included with purchase.

WARNING! Not recommended for impact wrenches.
