Legacy Product

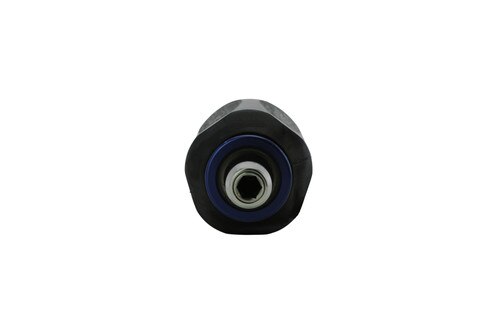

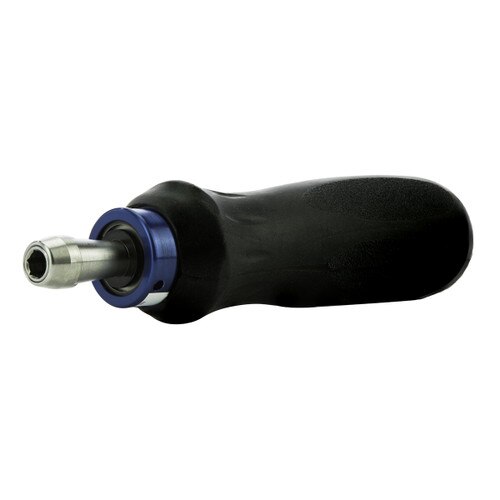

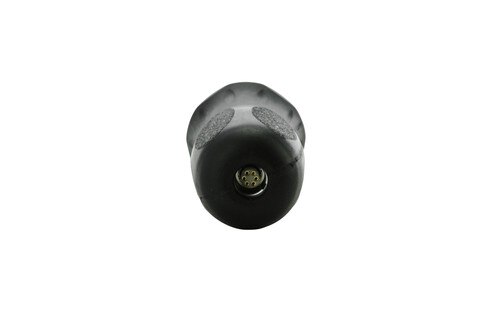

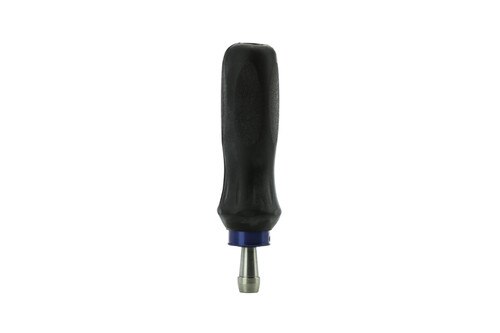

SDX50i Torque Sensor

Item #: 078001
Certifications:
The SDX50i torque sensor product has been discontinued. You can access supporting product information from this page. READ MORE

Specs

Model:
SDX50i
Item #:
078001
Drive Size:
1/4" F/Hex
American:
5 - 50 lbf.in
S.I.:
56.5 - 565 cN.m
Metric:
5.5 - 57.6 kgf.cm
Tool Length:
6
Tool Width:
1.25
Cal Cert Options Data Set:
Supplied with a Free ISO 17025 Certification of Calibration
The SDX50i torque sensor product has been discontinued. You can access supporting product information from this page.
Accuracy ± .25% of full scale

Accessories

Torque Analyzers
PTT
LTT

Cables for connecting SDX to Torque Analyzers
PTT
LTT
  • Torque Sensors for auditing or tightening fasteners to a specified torque when mated with a torque analyzer.
  • Ergonomic rubber grip and stainless steel Female/Hex bit holder.
  • Features ARC II technology, an instant auto-recognition system of the SDX connected to the LTT or PTT.
  • Connect to a torque analyzer to monitor, test or audit a fastener.
  • Safe Overload: 125% of Rated Output.
This is the stand alone accuracy statement for the SDX torque sensor. When the torque sensor is coupled with a Mountz torque analyzer, there is a system accuracy. Review the system accuracy listed with each torque analyzer (PTT or LTT).
