TBIH Preset Break-Over Wrench - Gold

Item #: 068004-B
$170.00
In Stock
The TBIH is a small torque wrench ideal for applications with limited space. The flexible preset wrench can adapt to dif READ MORE

Calibration Options For This Product:

Add Calibration Service — $40.00

Preset Value is required

Torque Unit is required

Add Calibration Certificate

Time Interval is required

Note: If you'd like to engrave multiple items with different engraving text you will need to add them to the cart individually. Engraved tools and engraving fees are non-refundable.

View Engraving Location

Item(s) successfully added to your cart.

F
T
T

Specs

Model:
TBIH Wrench Gold
Item #:
068004-B
Drive Size:
TBIH End
American:
3 - 12 lbf.in
S.I.:
33.9 - 135.6 cN.m
Metric:
3.5 - 13.8 kgf.cm
Tool Length:
5.5
Handle Color:
Gold

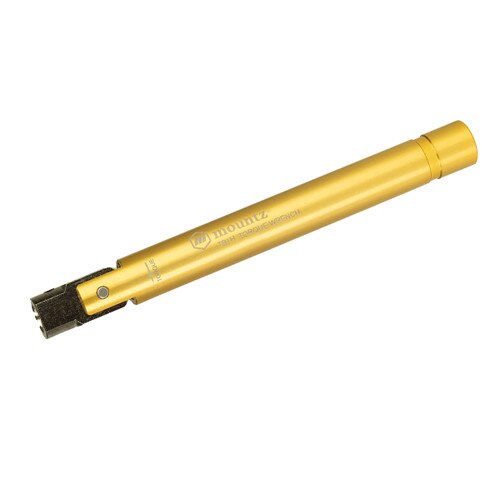

The TBIH is a small torque wrench ideal for applications with limited space. The flexible preset wrench can adapt to different fastening applications as it is compatible with different head options like open end, box end, flare end, hex key end or a ratchet head. The slim wrench features a tamper-proof internal adjustment. When the TBIH torque wrench achieves torque, the head breaks-over signaling to the operator to stop applying torque to the fastener or bolt. Break-over torque wrenches improve control of the fastening process by reducing the risk of both over and under tightening.
The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789 (+/- 6% of indicated setting).

Accessories

First, select the model (handle color and torque range), then select a head. The flexible TBIH wrench can adapt to a variety of interchangeable head fittings.


Calibration & Service:

  • Torque Analyzers & Sensors: If torque tools slip out of calibration, that could impact the quality of your products. An accurate way to regularly test calibration onsite is a great way to reduce risk and ensure safety. With Mountz torque analyzers and sensors, you can test tools before they go into service daily or weekly.
  • Hex Step Adapters: When performing torque wrench calibration or testing, adapters are often needed, especially with torque wrenches with open-end heads. Mountz’s calibration hex step adapter features three or four common sizes, increasing the productivity of your torque wrench calibration process. This adapter will make testing and calibration efficient and straightforward.
  • Prepaid Calibration Vouchers: Book service and maintenance in advance to ensure your tools are always in top condition and ready to use. Add this service to the TBIH wrench purchase.

    Error-Proofing:

    • Torque limiting wrench improves control of the tightening process, reducing the risk of over and under-tightening to deliver repeatability, traceability, and precision for tightening applications.
    • A preset wrench ensures that the correct torque value is applied consistently to each fastener by reducing the risk of the operator tampering with settings. This tool has no external adjustment scale and is set using a torque analyzer.


    Advanced Technology:

    • Unique interchangeable end fitting design— we offer selectable head types and sizes, including open end, box head, hex key, and ratchet heads.
    • We manufacture interchangeable heads with a common centerline, so the torque setting remains unchanged when changing head sizes.


    Process Improvement:

    • The break-over mechanism provides a visual indicator of achieving torque setting, improving productivity. The tool only operates in a CW direction.
    • Colored aluminum handles allow for color-coding of specific torque values in production areas.

Torque is easily adjusted by removing the cap and turning the adjustment screw with the 3/16” Hex Key (supplied). Then verify torque output using a torque analyzer.
