VZ3012PS Electric Screwdriver
Item #: 144353
Calibration Options For This Product:
Add Calibration Service — $40.00
Preset Value is required
Torque Unit is required
Add Calibration Certificate
Time Interval is required
F
T
T
Specs
Model:
VZ3012PS
Item #:
144353
Drive Size:
1/4" F/Hex
American:
7.8 - 26 lbf.in
S.I.:
90 - 300 cN.m
Metric:
9 - 30 kgf.cm
Tool Weight:
24 oz.
Tool Length:
11
RPM:
1200
Grip Dia:
1 1/2"
110V:
true

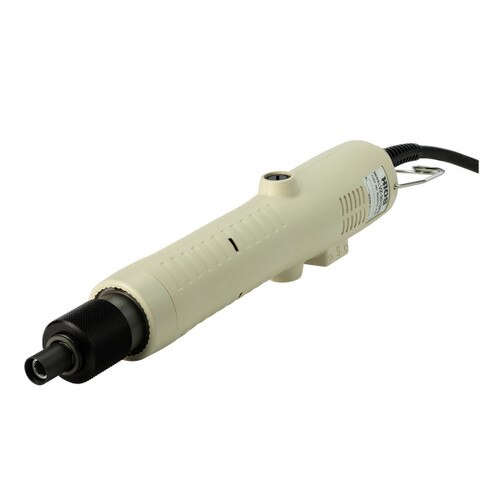

The HIOS VZ-Series electric screwdriver is designed to plug directly into a power outlet and does not require a separate power supply unit. Ensures accuracy in fastening with precision automatic shut-off clutch once preset torque is achieved. Operates on a duty cycle of 0.5 seconds on and 3.5 seconds off.
- Various models that range from 3.5 - 39 lbf.in
- Plugs directly into a power outlet. Separate power supply not required
- Positive auto shut-off.
- Ergonomic hand grip.
- Push-to-start and Lever operated styles available.
- Duty cycle tool.
- 120 VAC, 10 foot power cord.
- External torque adjustment scale.
