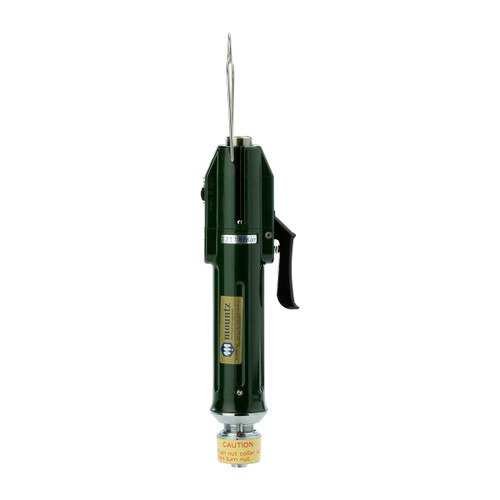

A4500X Electric Screwdriver

Item #: 144113
$694.00

This tool typically ships within 7 weeks. For further information, call 408-684-1442.

The HIOS electric torque screwdriver is designed with a powerful, high speed motor to increase productivity and efficien READ MORE
Model:
A4500X
Item #:
144113
Drive Size:
1/4" F/Hex
American:
3.5 - 7 lbf.in
S.I.:
40 - 80 cN.m
Metric:
4 - 8 kgf.cm
Tool Weight:
16 oz.
Tool Length:
7.75
RPM High:
1700
RPM Low:
1200
Grip Dia:
1 1/4"

Item(s) successfully added to your cart.

Please select your calibration option below before adding to cart

Add Calibration Service — $35.00

Please select an option:
  ADD SERVICE
  NO SERVICE NEEDED

Preset Value is required

Torque Unit is required

Add Calibration Certificate

Please select an option:
  ADD CERTIFICATE
  NO CERTIFICATE NEEDED

Time Interval is required

F
T
T

You will also need

Item #145683
$285.00
Item(s) successfully added to your cart.

Product Details

The HIOS electric torque screwdriver is designed with a powerful, high speed motor to increase productivity and efficiency. Ensures accuracy in fastening with precision automatic shut-off clutch once preset torque is achieved.

Product Benefits

  • Various models that range from 3.5 - 16 lbf.in.
  • A-Series drivers utilize a samarium cobalt magnet in the motor to achieve higher speeds than comparable to the CL-Series drivers. Size and weight increases are minimal.
  • Ensures accuracy in fastening with precision automatic shut-off clutch once preset torque is achieved.
  • External torque adjustment scale.
  • Available with Lever Start and Push-to-Start models.
  • Can be connected with the Scout Screw Counter.
  • Requires a Transformer (power supply).
  • ESD Models available upon request.
Note! Requires a Transformer (power supply).
