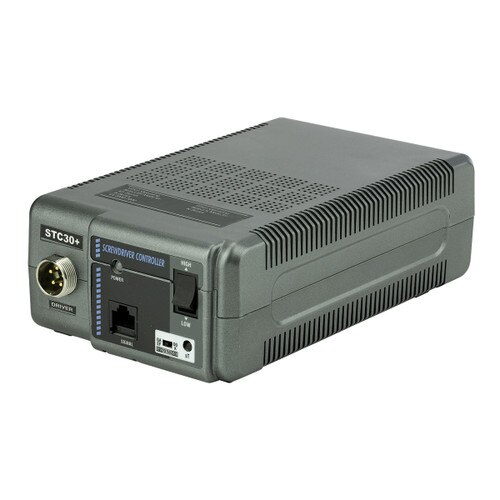

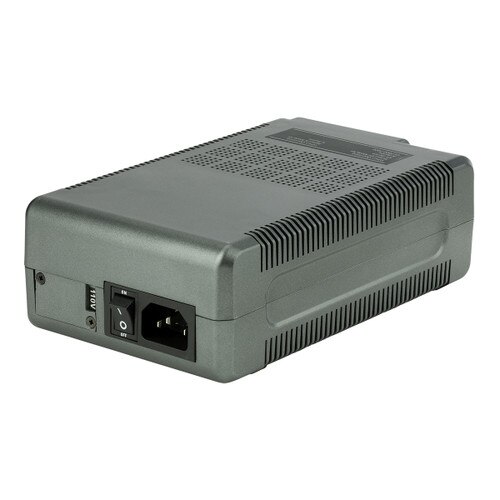

STC30 Plus Transformer

Item #: 145683
$285.00
The STC 30 Plus is a power supply that operates with select Mountz electric screwdrivers. It is single tool controller t READ MORE
Model:
STC30 Plus
Item #:
145683
Tool Weight:
1.8 lbs.
Tool Length:
7.5
Tool Width:
4.375
Tool Height:
3.375
Rated Output:
2.5A
Maximum Output:
5A
Output VDC:
20/30V or 30/38V
Input VAC:
110/230V
Fuse Size:
6.3A

Product Details

The STC 30 Plus is a power supply that operates with select Mountz electric screwdrivers. It is single tool controller that is designed to operate at both 110v and 230v. Switchable output voltage gives two-speed option on screwdrivers. The unit is can connect with the Scout screw counting system.

Product Benefits

    • Selectable output voltage
    • Over Heat Protection (OHP) and Over Current Protection (OCP) protect driver from damage or malfunction.
    • Temperature Detection powers down the unit and resets automatically when unit restores to acceptable levels.
    • Switchable 110V & 230V input voltage. Unit will reset itself if motor/current overload is too high
    • Start & Stop Signal Output (for PLC).
    • Selectable Soft Start time (from 0.2-0.6 seconds).
    • Selectable Double Hit Mode for soft joint applications.
    • Screwdriver Lock Signal Input (for PLC).
    • Unit can be connected to the Scout Screw Counter.
Operates with Electric Screwdriver Models: A-Series, CL-Series, EF-Series, & K-Series
