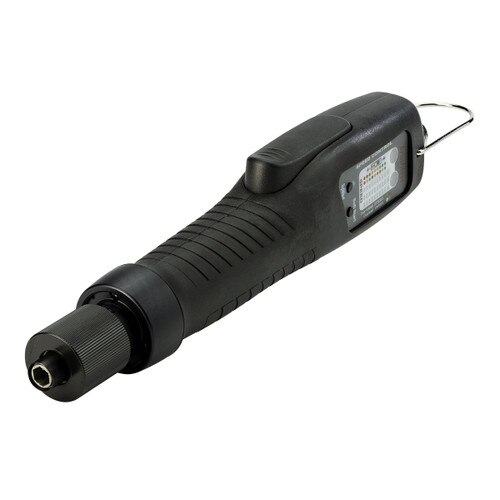

BFS060 ESD Brushless Electric Screwdriver

Item #: 145888
Certifications:
$1,375.00
In Stock

The BF-Series soft stop model is designed with a unique "soft-stop" shock-absorbing clutch that is ideal for fastenin READ MORE

NOTE: Requires Companion Items View

Calibration Options For This Product:

Add Calibration Service — $50.00

Preset Value is required

Torque Unit is required

Add Calibration Certificate

Time Interval is required

Item(s) successfully added to your cart.

F
T
T

Required Companion Items:

Torque Cover for BF-Series
Item #145611
$35.00
Item(s) successfully added to your cart.
STC40 Transformer
Item #145754
$335.00
Item(s) successfully added to your cart.
Program Lock Key
Item #145774
$45.00
Item(s) successfully added to your cart.

Specs

Model:
BFS060 ESD
Item #:
145888
Drive Size:
1/4" F/Hex
American:
0.9 - 5.2 lbf.in
S.I.:
9.8 - 58.8 cN.m
Metric:
1.5 - 6 kgf.cm
Tool Weight:
2 lb.
Tool Length:
13
Tool Height:
2.5
Minimum Adjustable RPM Range:
700
Maximum Adjustable RPM Range:
1600
Grip Dia:
1 1/4"
Requires Program Lock Key:
true

The BF-Series soft stop model is designed with a unique "soft-stop" shock-absorbing clutch that is ideal for fastening shock-delicate components such as disk drives, plastics, and electronics. The ergonomically designed soft stop clutch reduces impact and vibration transmitted in the screw fastening process, which delivers less torque reaction to the operator. The electric screwdriver offers an adjustable speed setting and a selectable Soft Start mode. Designed for precision torque control, the brushless motor design ensures durability and reduces the standard maintenance costs associated with brush-type electric screwdrivers. The BF power tool is ESD certified, ensuring less than 1 Ohm at the bit tip. ESD management ensures product quality, cost savings, and a reduction in overall ESD failures. Manufacturing engineers involved with microelectronic products are aware of the importance of controlling Electrostatic Discharge (ESD) failures. Lapses in preventing the occurrence of electrostatic discharge can affect production yields, manufacturing costs, product quality, product reliability, reputation, and profitability.

Accessories

Set-Up:

  • Requires an STC40 (power supply).
  • Requires Program Lock Key (Item # 145774) in order to adjust RPM & Soft Start Settings for select BF-Series models. The Program Lock Key must be plugged into the STC40 Transformer.
  • Pistol Grip Attachment: Convert the in-line electric screwdriver into a pistol grip-style tool. Compatible with only these models: BF060, BF080 & BF120.
  • Drive Adapter: This adapter is for changing to a different bit drive socket configuration from a ¼” drive to a 4mm HIOS drive on the BF-Series driver.

Error-Proofing & Process Improvement:

  • Torque Cover: for BF060, BF080 & BF120 models only. Torque cover protects the BF-Series electric screwdriver from incidental adjustment or operator tampering with the tool.
  • Screw Counter: Add an error-proofing device to the BF driver, eliminate costly screw fastening errors and reduce scrap rates. The fastener tracking device counts the number of screws delivered and detects and displays fastening errors in real-time such as cross-threading, stripped screws, cam-outs, unfinished rundowns, and parts with missing screws.
  • Screw Presenter: Deliver up to two screws per second to a fixed point where a human or robotic operator picks them up, cutting production time in half.
  • Mag-O-Nets: Magnetize a bit by sliding it onto the bit—commonly used with a screw presenter.
  • Vacuum Adapters: The kit is mounted on an electric screwdriver with a suction head that holds the screw on the bit, enabling the operator to pick it up with the tool. This effective, time-saving device works with most fasteners—commonly used with a screw presenter.

Ergonomics:

  • Tool Balancers: Provides easy handling for operators that work with power tools for long, continuous hours. A balancer enables a tool to be positioned over the workstation and helps workers avoid fatigue which can lead to low productivity, mistakes, and injuries.
  • Ergonomic Torque Arms: Providing ergonomic solutions for your assembly line workers lessens fatigue, prevents injuries, and boosts productivity. Torque arm absorbs the torque reaction generated by a power tool.. Mountz offers various arm configurations for flexible and mobile workstation designs. The ergonomic torque arms improve employee safety.
  • Tool Stand: Prevent damage to power tools from dropping. Convenient tool positioning - adjust both vertically and horizontally.

Service & Calibration:

  • Torque Analyzers & Sensors: If torque tools slip out of calibration, that could impact the quality of your products. Having an accurate way to test calibration onsite regularly is a great way to reduce risk. With Mountz torque analyzers and sensors, you can test tools before they go into service daily or weekly.
  • Run-Down Adapters: It is used when testing power tools with a torque analyzer or sensor. The run-down adapter (RDA) is designed to provide consistent and reliable torque readings for power-driven torque control tools. An RDA reduces the impact and irregular peaks that cause poor repeatability. The device is mounted in-line between the tool drive and the transducer.
  • Prepaid Calibration Vouchers: Book calibration in advance to ensure your tools are always in top condition and ready to use. Add this service to any tooling purchase.

Related Products

    Error-Proofing:

    • The external torque adjustment scale allows team leaders to change torque quickly and easily. For an extra layer of error-proofing, add a torque cover that prevents operators from making adjustments without approval, preventing mistakes.


    Process Improvement:

    • Designed for high-production environments, BF drivers experience minimal heat build-up, even when the tool is operated continuously. Over Heat Protection (OHP) and Over Current Protection (OCP) protect drivers from damage or malfunction.
    • ESD safe tool prevents electrostatic discharge, which improves production yields, manufacturing costs, product quality, product reliability, reputation, and profitability.
    • BF-Series drivers can be connected with the Scout Screw Counter for an additional layer of error-proofing.
    • Precision "Soft-Stop" clutch prevents shock to sensitive assemblies like disk drives, plastics, electronics, etc.
    • The screwdriver features a selectable soft start mode (from 0.2-0.6 seconds) that controls the initial speed ramp. Adjust the starting speed of an electric screwdriver for a slow rotation, which allows for smooth engagement between fasteners and parts. It helps prevent cross-threading.
    • BF-Series Soft Stop Models feature an adjustable RPM setting on the tool. The RPM setting is adjusted with designated RPM increments within the range of the tool model.


    Mountz Quality Standard:

    • High-performance Swiss Maxon brushless motor design provides durability and reduces the standard maintenance costs for electric screwdrivers.

    Set-Up:

    • Requires an STC40 (power supply).
    • Requires Program Lock Key (Item # 145774) in order to adjust RPM & Soft Start Settings for select BF-Series models. The Program Lock Key must be plugged into the STC40 Transformer.
Requires Program Lock Key (Item # 145774) in order to adjust RPM & Soft Start Settings for select BF-Series models. Program Lock Key must be plugged into the STC40 Transformer.
