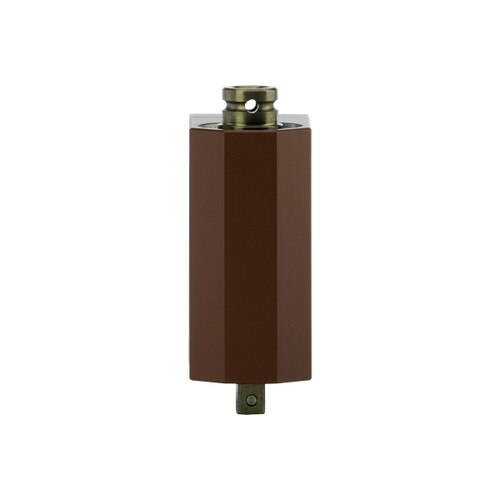

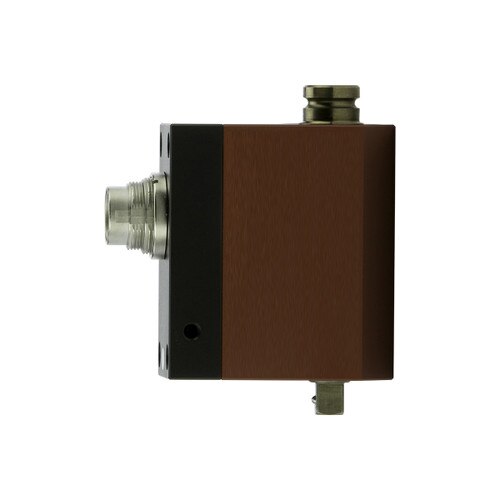

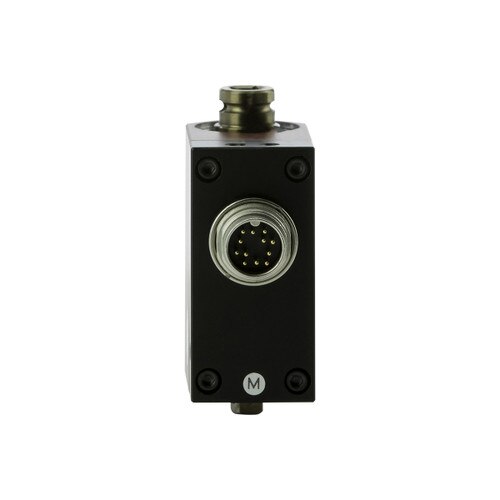

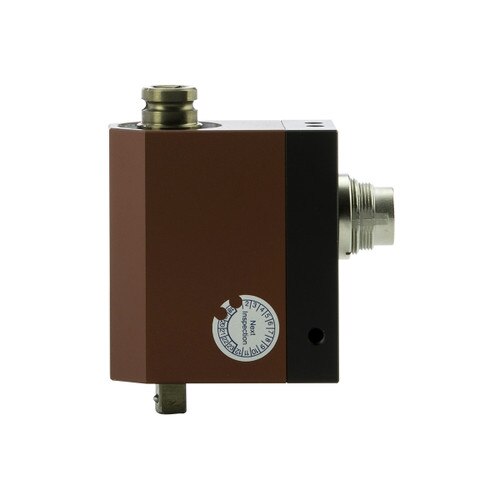

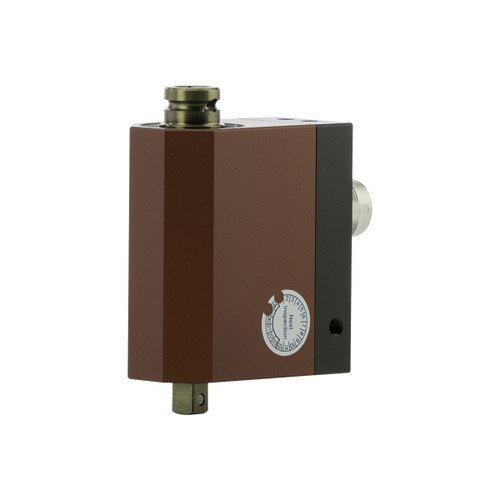

BLRTSX160i Brushless Rotary Torque Sensor

Item #: 170234
$3,585.00
The Mountz brushless rotary torque sensors are an ideal torque-auditing tool for testing the actual torque being applied READ MORE
Model:
BLRTSX160i
Item #:
170234
American:
16 - 160 lbf.in
S.I.:
180 - 1807 cN.m
Metric:
18.4 - 184 kgf.cm
Input Drive:
1/4 F/Sq
Output Drive:
1/4 M/Sq
Tool Length:
3
Tool Width:
1.1
Tool Height:
2
Cal Cert Options Data Set:
Supplied with a Free ISO 17025 Certification of Calibration

Item(s) successfully added to your cart.

Please select your calibration option below before adding to cart

Add Calibration Certificate — $0.00

Please select an option:
  ADD CERTIFICATE
  NO CERTIFICATE NEEDED

Time Interval is required

T
F
T

You will also need

Item #072001
$325.00
Item(s) successfully added to your cart.

Product Details

The Mountz brushless rotary torque sensors are an ideal torque-auditing tool for testing the actual torque being applied on the assembly application. Particularly valuable for measuring torque on pulse tools with strong vibrations. By connecting a rotary torque sensor between an electric or pneumatic tool and assembly application, you can monitor the torque being applied from the tool to a fastener or bolt.
Accuracy ± .2% of full scale

Product Benefits

  • The brushless rotary torque sensor is a compact design & bi-directional.
  • The common brush bounce that plagues the accuracy testing of pulse tools is cured when using a BLRTSX.
  • Bi-directional.
  • Non-Contact signal transfer and maintenance free.
  • For use with most power tools, high RPM tools, or rotational measurement applications.
  • Features ARCII technology, an instant auto-recognition system of the BLRTSX connected to the PTT or LTT.
This is the stand alone accuracy statement for the BLRTSX torque sensor. When the torque sensor is coupled with a Mountz torque analyzer, there is a system accuracy. Review the system accuracy listed with each torque analyzer (PTT or LTT).

WARNING! Not recommended for impact wrenches.
