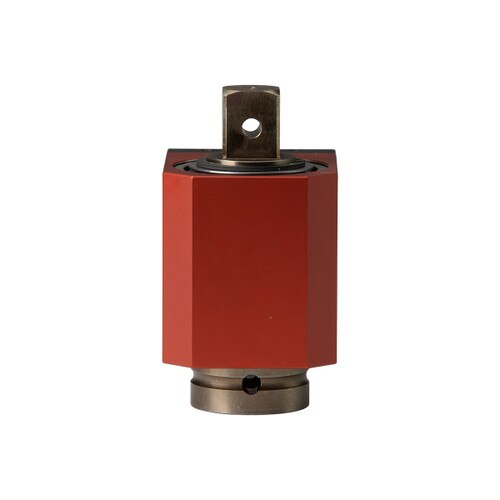

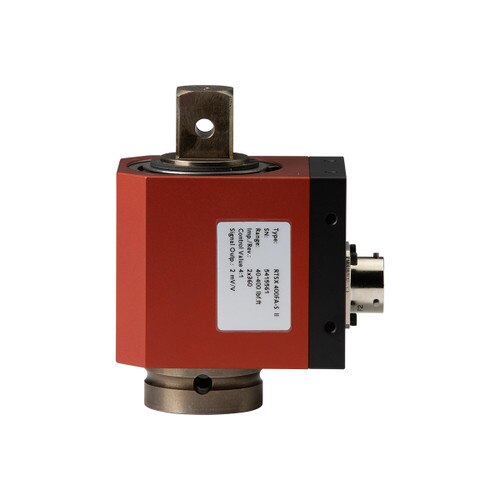

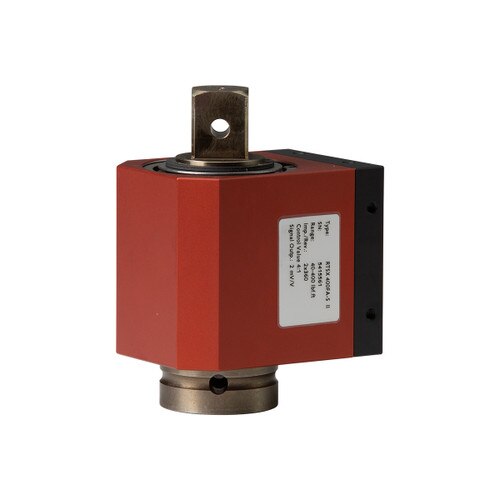

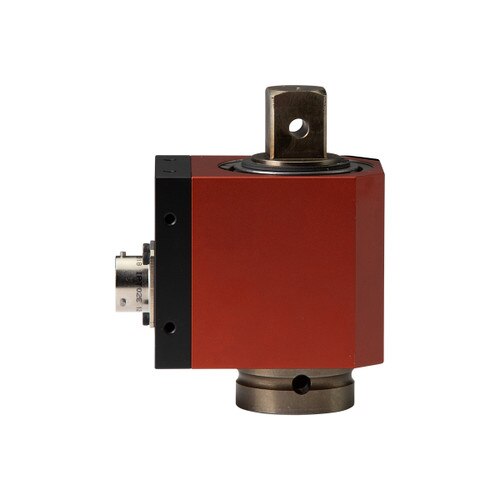

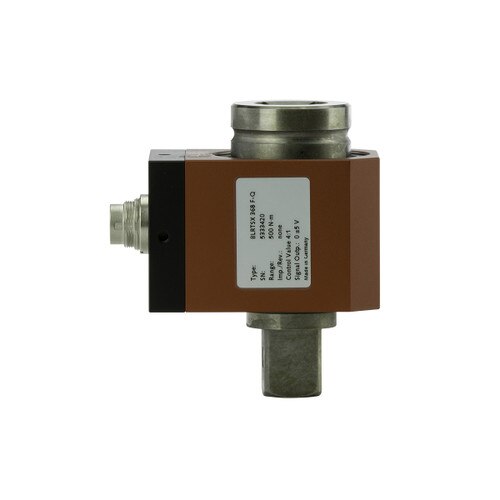

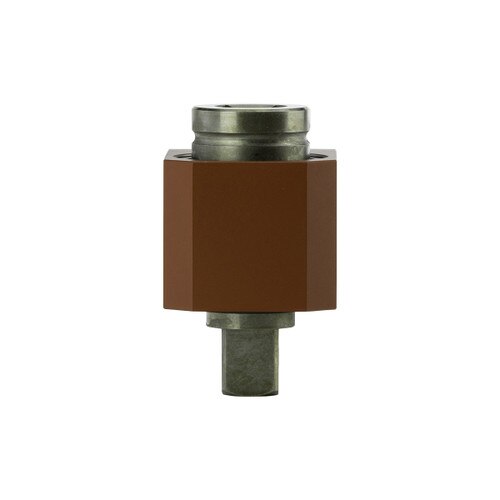

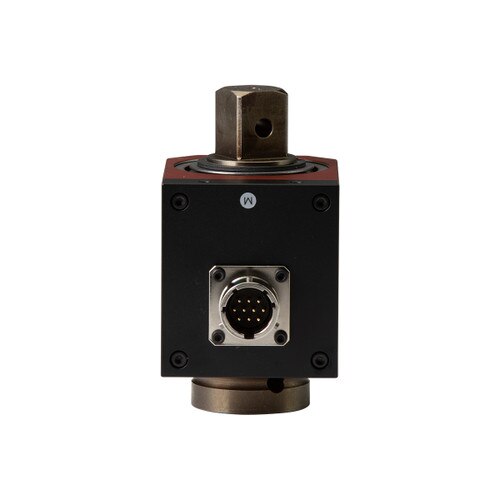

BLRTSX368F Brushless Rotary Torque Sensor

Item #: 170240
Certifications:
$5,435.00

Please contact customer service for current lead time status, call 408-684-1442.

The brushless rotary torque sensor is an instrument for measuring dynamic torque in fastening applications. The rotar READ MORE

NOTE: Requires Companion Items View

Calibration Options For This Product:

Add Calibration Certificate — $.00

Time Interval is required

Item(s) successfully added to your cart.

T
F
T

Required Companion Items:

Cable BLRTSX to PTT and LTT
Item #072001
$435.00
Item(s) successfully added to your cart.

Specs

Model:
BLRTSX368F
Item #:
170240
American:
37 - 368 lbf.ft
S.I.:
50 - 500 N.m
Metric:
5.1 - 50.8 kgf.m
Input Drive:
3/4 F/Sq
Output Drive:
3/4 M/Sq
Tool Length:
3.8
Tool Width:
2.3
Tool Height:
3
Cal Cert Options Data Set:
Supplied with a Free ISO 17025 Certification of Calibration

The brushless rotary torque sensor is an instrument for measuring dynamic torque in fastening applications. The rotary torque sensor is ideal for torque auditing programs and verification processes when paired with a torque analyzer. The brushless design features a non-contact signal transfer and is maintenance-free.

Connect a rotary torque sensor between an electric or pneumatic tool and the assembly application. The sensor quickly attaches to a power tool's drive without interfering with its ability to fasten a screw or bolt. The sensor measures torque under joint conditions, returning the most accurate results possible. The sensor is also compatible with measuring hand tools like torque wrenches and screwdrivers.

The sensor must be used with a torque analyzer and easily connect to Mountz LTT and PTT torque analyzers via cable using plug-and-play ARC II technology.

Torque Sensor Accuracy
System Accuracy ± 0.5% of reading from 20% to 100% when connected to an LTT or PTT
System Accuracy ± 1% of reading from 10% to 20% when connected to an LTT or PTT

Accessories

Torque Analyzers
PTT
LTT

Cables for connecting BLRTSX to Torque Analyzers
PTT
LTT

  • The brushless rotary torque sensor is a compact design & bi-directional.
  • The common brush bounce that plagues the accuracy testing of pulse tools is cured when using a BLRTSX.
  • Bi-directional.
  • Non-Contact signal transfer and maintenance free.
  • For use with most power tools, high RPM tools, or rotational measurement applications.
  • Features ARCII technology, an instant auto-recognition system of the BLRTSX connected to the PTT or LTT.
This is the stand alone accuracy statement for the BLRTSX torque sensor. When the torque sensor is coupled with a Mountz torque analyzer, there is a system accuracy. Review the system accuracy listed with each torque analyzer (PTT or LTT).

WARNING! Not recommended for impact wrenches.
