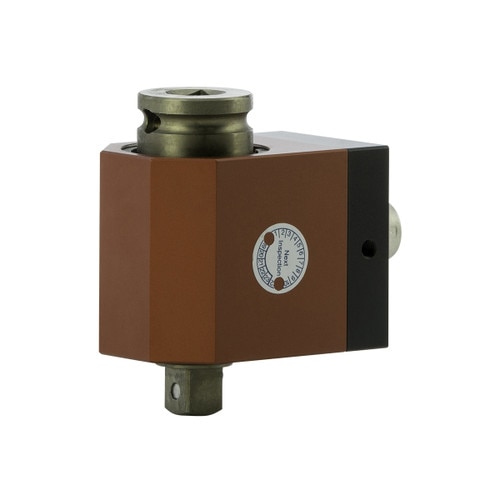

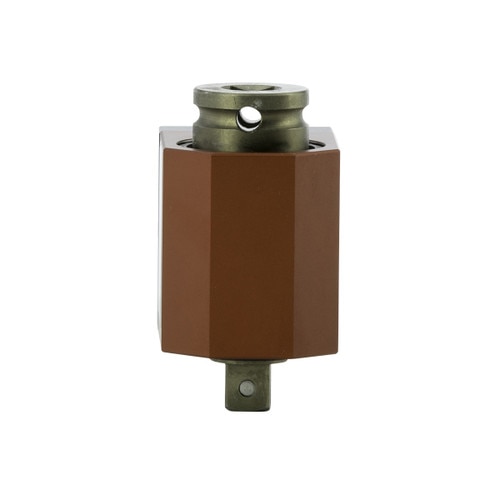

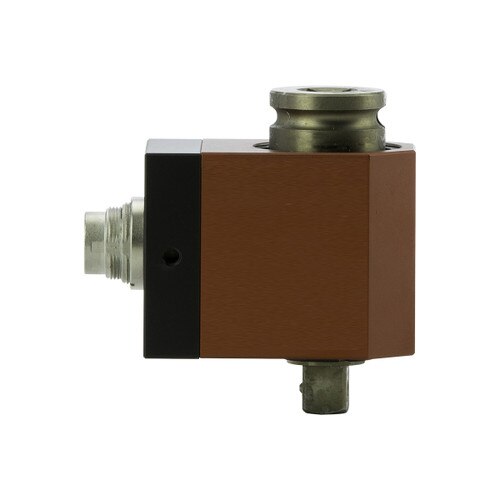

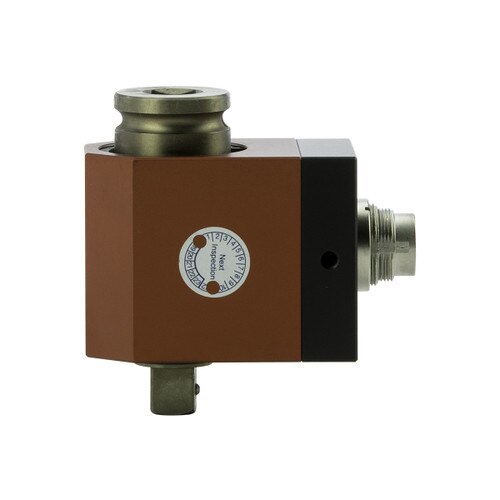

BLRTSX36F Brushless Rotary Torque Sensor

Item #: 170236
$3,700.00

This tool typically ships within 7 - 9 weeks. For further information, call 408-684-1442.

The Mountz brushless rotary torque sensors are an ideal torque-auditing tool for testing the actual torque being applied READ MORE
Model:
BLRTSX36F
Item #:
170236
American:
4 - 36 lbf.ft
S.I.:
5 - 50 N.m
Metric:
0.6 - 5 kgf.m
Input Drive:
3/8 F/Sq
Output Drive:
3/8 M/Sq
Tool Length:
2.9
Tool Width:
1.5
Tool Height:
2.3
Cal Cert Options Data Set:
Supplied with a Free ISO 17025 Certification of Calibration

Item(s) successfully added to your cart.

Please select your calibration option below before adding to cart

Add Calibration Certificate — $0.00

Please select an option:
  ADD CERTIFICATE
  NO CERTIFICATE NEEDED

Time Interval is required

T
F
T

You will also need

Item #072001
$325.00
Item(s) successfully added to your cart.

Product Details

The Mountz brushless rotary torque sensors are an ideal torque-auditing tool for testing the actual torque being applied on the assembly application. Particularly valuable for measuring torque on pulse tools with strong vibrations. By connecting a rotary torque sensor between an electric or pneumatic tool and assembly application, you can monitor the torque being applied from the tool to a fastener or bolt.
Accuracy ± .2% of full scale

Product Benefits

  • The brushless rotary torque sensor is a compact design & bi-directional.
  • The common brush bounce that plagues the accuracy testing of pulse tools is cured when using a BLRTSX.
  • Bi-directional.
  • Non-Contact signal transfer and maintenance free.
  • For use with most power tools, high RPM tools, or rotational measurement applications.
  • Features ARCII technology, an instant auto-recognition system of the BLRTSX connected to the PTT or LTT.
This is the stand alone accuracy statement for the BLRTSX torque sensor. When the torque sensor is coupled with a Mountz torque analyzer, there is a system accuracy. Review the system accuracy listed with each torque analyzer (PTT or LTT).

WARNING! Not recommended for impact wrenches.
