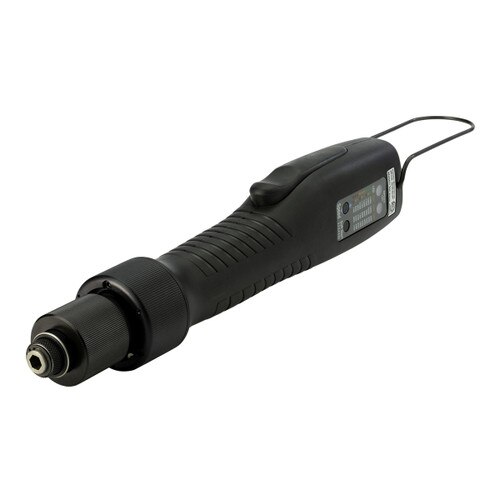

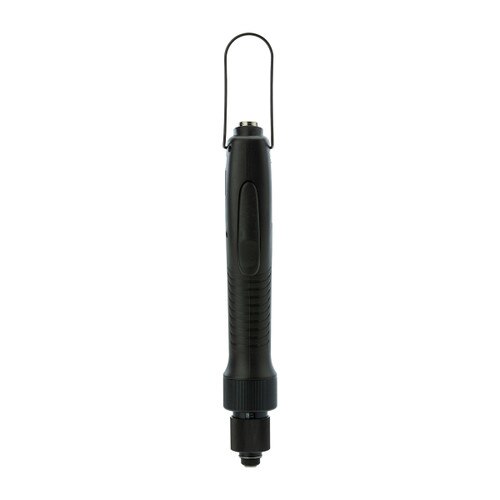

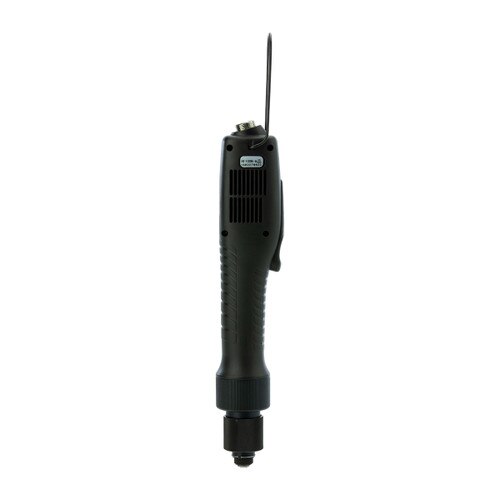

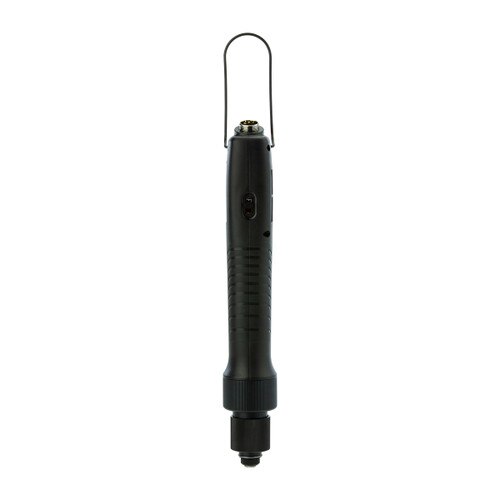

HF100N-A ESD Brushless Electric Screwdriver
Item #: 145927
Certifications:
Calibration Options For This Product:
Add Calibration Service — $50.00
Preset Value is required
Torque Unit is required
Add Calibration Certificate
Time Interval is required
F
T
T
Required Companion Items:
Specs
Model:
HF100N-A ESD
Item #:
145927
Drive Size:
1/4" F/Hex
American:
34.7 - 87 lbf.in
S.I.:
392.4 - 981 cN.m
Metric:
40 - 100 kgf.cm
Tool Weight:
28.6 oz.
Tool Length:
11.33
Minimum Adjustable RPM Range:
150
Maximum Adjustable RPM Range:
550
Grip Dia:
1 1/2"
Requires Program Lock Key:
true
The HF-Series brushless electric torque screwdriver provides precision torque control. The electric screwdriver ensures quality and reduces overall assembly failures. These durable power tools feature a Swiss Maxon brushless motor design, which reduces the standard maintenance costs for electric screwdrivers. With almost no expendable parts and simple design, the brushless screwdriver life cycle is extended and maintains a clean working environment. The screwdriver requires less maintenance and part replacement and provides consistently reliable performance. Using a quality brushless electric screwdriver makes a safer world through accuracy and precision.
- High-performance Swiss Maxon brushless motor design provides durability and reduces the standard maintenance costs for electric screwdrivers. comfort.
- Designed for high production environments. Minimal heat build-up even when the tool is operated continuously.
- Adjustable RPM setting on the tool. A selectable Soft Start mode from 0.2-0.6 seconds.
- Over Heat Protection (OHP) and Over Current Protection (OCP) protect drivers from damage or malfunction. Features a LED display that signals the tool status for the operator to view.
- External torque adjustment scale.
- Can be connected with the Scout Screw Counter.
- Requires an HTC35 transformer (power supply).
- All models are ESD designed and prevent the occurrence of electro-static discharge, which improves production yields, manufacturing costs, product quality, product reliability, reputation, and profitability.
Requires Program Lock Key (Item # 145774) in order to adjust RPM & Soft Start Settings. Program Lock Key must be plugged into the HTC35 Transformer.
