Loading Bench Model LB250F

Item #: 063302
$12,625.00

Please contact us for availability. 408-684-1442

The Mountz loading bench is a laboratory-grade instrument designed to enable accurate torque wrench calibration with READ MORE

NOTE: Requires Companion Items View

Required Companion Items:

Cable BMX to PTT and LTT
Item #072002
$375.00
Item(s) successfully added to your cart.

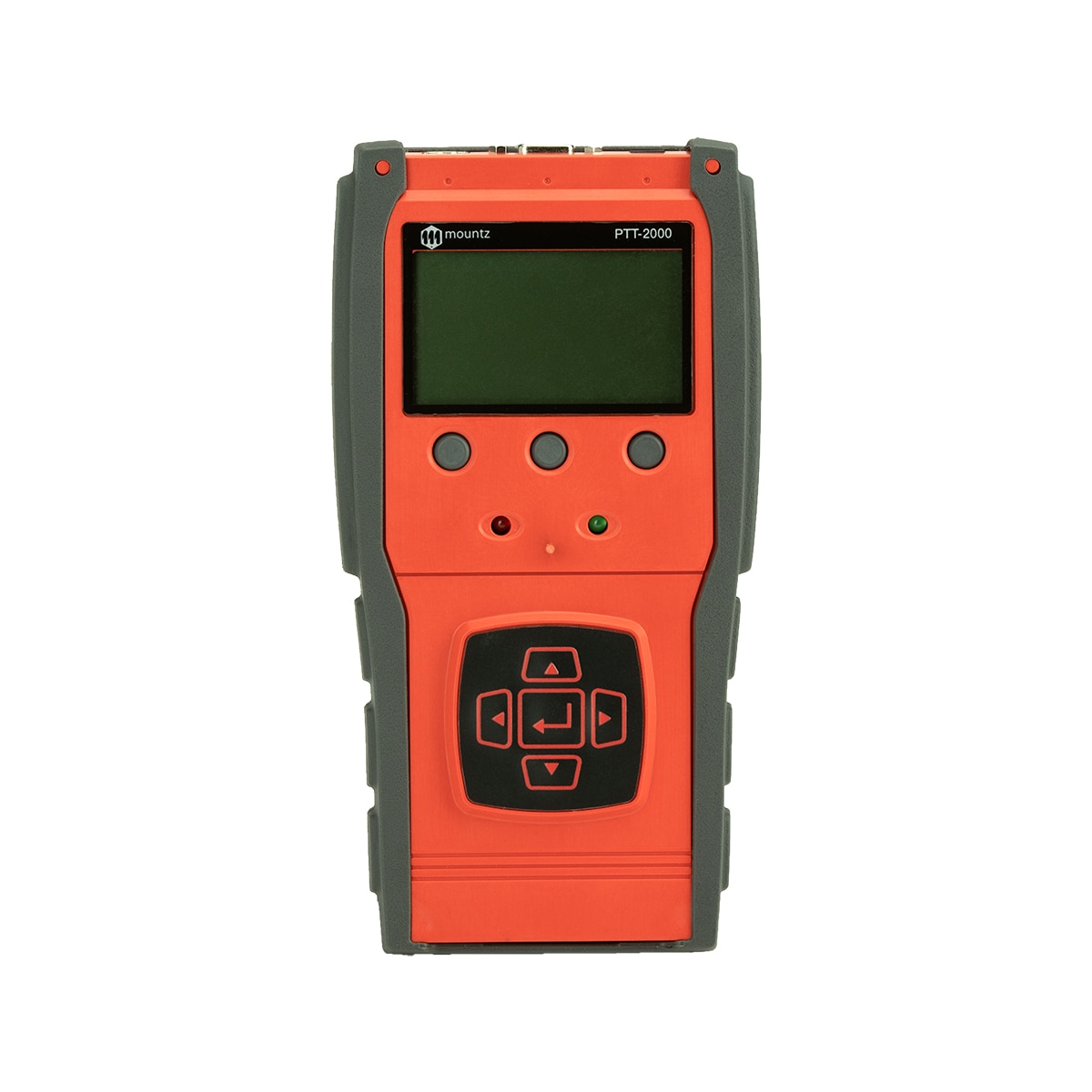

TorqueMate® PTT-2000 Torque Analyzer
Item #072999
$3050.00
Item(s) successfully added to your cart.
BMX250F Torque Sensor
Item #077012
$2825.00
Item(s) successfully added to your cart.

Specs

Model:
LB250F
Item #:
063302
American:
0 - 250 lbf.ft
S.I.:
0 - 340 N.m
Metric:
0 - 34.5 kgf.m
Tool Weight:
53 lb.
Tool Length:
10.75
Tool Width:
37.5
Tool Height:
12

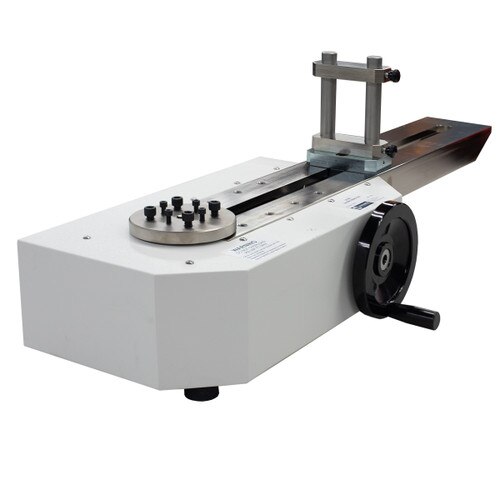

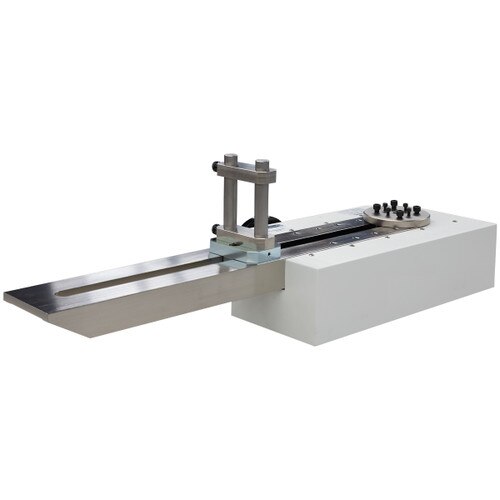

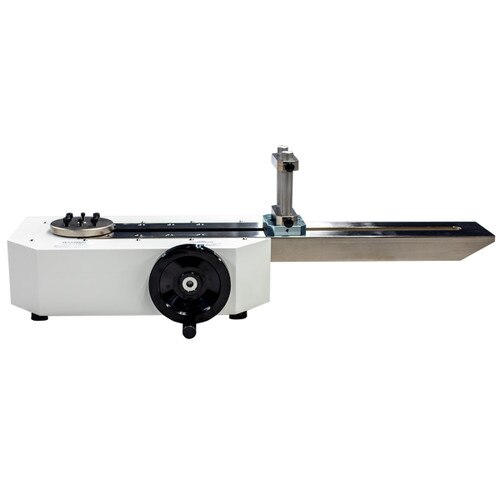

The Mountz loading bench is a laboratory-grade instrument designed to enable accurate torque wrench calibration with less physical effort. The calibration instrument enables quick and easy torque wrench calibration and presetting, independent of human influence or transducer side and end load factors.

Accessories

Enhance your torque calibration setup with these compatible accessories designed to improve efficiency and accuracy:


BMX Torque Sensors
Precision sensors engineered to measure torque accurately across a wide range of applications. Compatible with the loading benches to provide real-time torque data during calibration.


PTT Torque Analyzer
Portable and easy-to-use analyzer designed for on-the-go torque testing and calibration. Seamlessly integrates with BMX sensors and the loading bench for complete system functionality.


LTT Torque Analyzer
Advanced laboratory-grade torque analyzer offering comprehensive calibration, verification, and data logging capabilities. Ideal for professional calibration labs paired with the loading bench.


Calibration Cables and Connectors
Mountz high-quality cables that connect the BMX to the PTT or LTT analyzer for high resolution readings.

Related Products

  • Item #

    • Effortlessly perform a torque wrench calibration with a mechanical torque wrench loader
    • The calibration instrument enables quick and easy torque wrench calibration and presetting, independent of human influence or transducer side and end load factors
    • The loading bench is a laboratory-grade instrument designed to allow accurate torque wrench calibration with less physical effort
    • A large wheel for smooth manual loading.
    • The ability to mount on a bench or cabinet

    • Adjustability to the size of the wrench being tested. Operational in both clockwise and counter-clockwise directions

    • Easy to use with the BMX torque sensor and an LTT or PTT torque analyzer.
