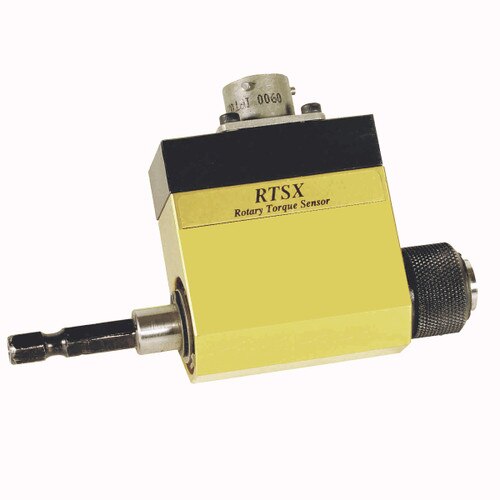

RTSX100i-H Rotary Torque Sensor

Item #: 170204
Certifications:
$3,725.00

Please contact customer service for current lead time status, call 408-684-1442.

The Rotary Torque Sensor is the ideal torque-auditing tool for testing the actual torque being applied on the assembly a READ MORE
NOTE: Requires Companion Items View

Calibration Options For This Product:

Add Calibration Certificate — $.00

Time Interval is required

Item(s) successfully added to your cart.

T
F
T

Required Companion Items:

Cable RTSX to PTT and LTT
Item #072005
$325.00
Item(s) successfully added to your cart.

Specs

Model:
RTSX100i-H
Item #:
170204
American:
10 - 100 lbf.in
S.I.:
113 - 1130 cN.m
Metric:
11.5 - 115 kgf.cm
Input Drive:
1/4 M/Hex
Output Drive:
1/4 F/Hex
Tool Weight:
0.625 lbs.
Tool Length:
4
Tool Width:
1.1
Tool Height:
2
Cal Cert Options Data Set:
Supplied with a Free ISO 17025 Certification of Calibration
The Rotary Torque Sensor is the ideal torque-auditing tool for testing the actual torque being applied on the assembly application. By connecting a rotary torque sensor between an electric or pneumatic tool and assembly application, you can monitor the torque being applied from the tool to fastener or bolt.
Accuracy ± .25% of reading

Accessories

Torque Analyzers
PTT
LTT

Cables for connecting RTSX to Torque Analyzers
PTT
LTT

  • Use torque sensor with most hand tools, power tools or rotational measurement applications.
  • Connects between the power tool and the joint. Monitors actual torque being applied from the driver to the fastener.
  • Features ARC II technology, an instant auto-recognition system of the RTSX connected to the PTT or LTT.
  • Bi-directional.
This is the stand alone accuracy statement for the RTSX torque sensor. When the torque sensor is coupled with a Mountz torque analyzer, there is a system accuracy. Review the system accuracy listed with each torque analyzer (PTT or LTT).

WARNING! Not recommended for impact wrenches.
