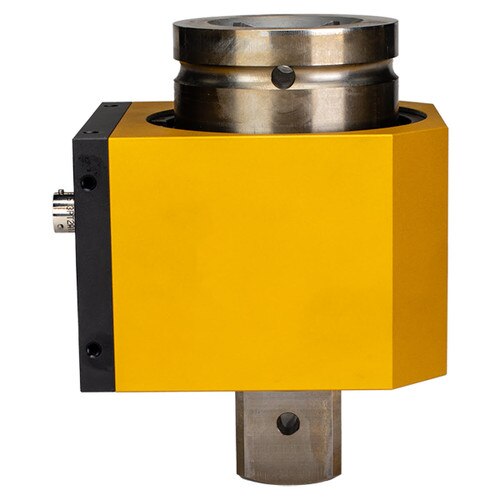

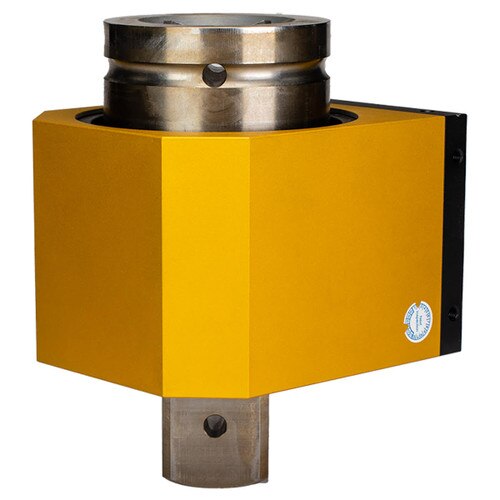

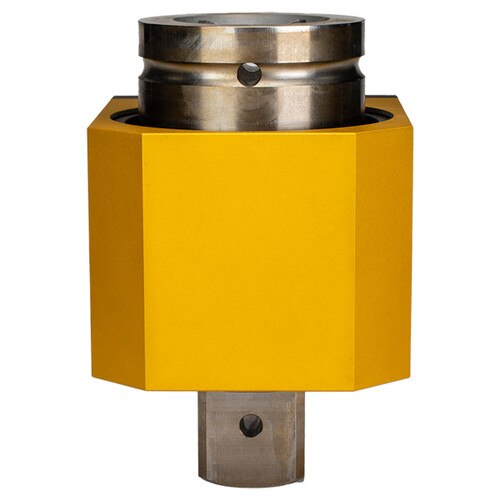

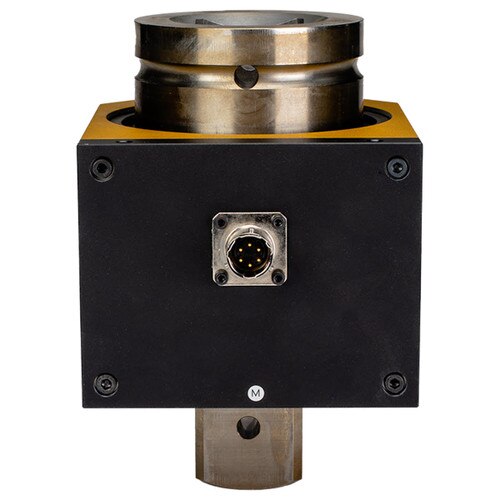

RTSX1500F Rotary Torque Sensor

Item #: 170212
$7,675.00

This tool typically ships within 7 - 9 weeks. For further information, call 408-684-1442.

The Rotary Torque Sensor is the ideal torque-auditing tool for testing the actual torque being applied on the assembly a READ MORE

PRODUCT SPECIFICATIONS

Model:
RTSX1500F
Item #:
170212
American:
150 - 1500 lbf.ft
S.I.:
203.3 - 2033 N.m
Metric:
20.7 - 207 kgf.m
Input Drive:
1 1/2 F/Sq
Output Drive:
1 1/2 M/Sq
Tool Length:
6.5
Tool Width:
4.3
Tool Height:
2
Cal Cert Options Data Set:
Supplied with a Free ISO 17025 Certification of Calibration
Watch Video

Item(s) successfully added to your cart.

Please select your calibration option below before adding to cart

Add Calibration Certificate — $0.00

Please select an option:
  ADD CERTIFICATE
  NO CERTIFICATE NEEDED

Time Interval is required

T
F
T

You will also need

Cable RTSX to PTT and LTT
Item #072005
$195.00
Item(s) successfully added to your cart.

Product Details

The Rotary Torque Sensor is the ideal torque-auditing tool for testing the actual torque being applied on the assembly application. By connecting a rotary torque sensor between an electric or pneumatic tool and assembly application, you can monitor the torque being applied from the tool to fastener or bolt.
Accuracy ± .25% of full scale

Product Benefits

  • Use torque sensor with most hand tools, power tools or rotational measurement applications.
  • Connects between the power tool and the joint. Monitors actual torque being applied from the driver to the fastener.
  • Features ARC II technology, an instant auto-recognition system of the RTSX connected to the PTT or LTT.
  • Bi-directional.
This is the stand alone accuracy statement for the RTSX torque sensor. When the torque sensor is coupled with a Mountz torque analyzer, there is a system accuracy. Review the system accuracy listed with each torque analyzer (PTT or LTT).

WARNING! Not recommended for impact wrenches.
