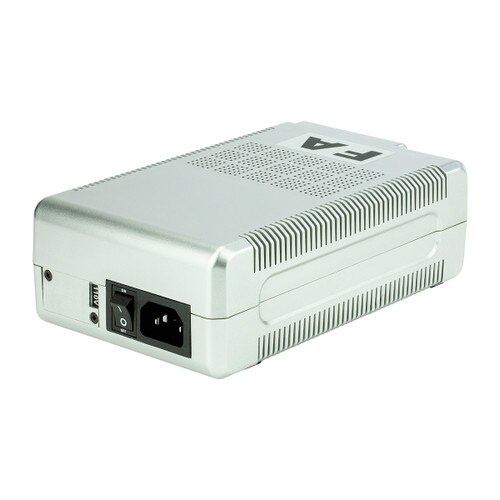

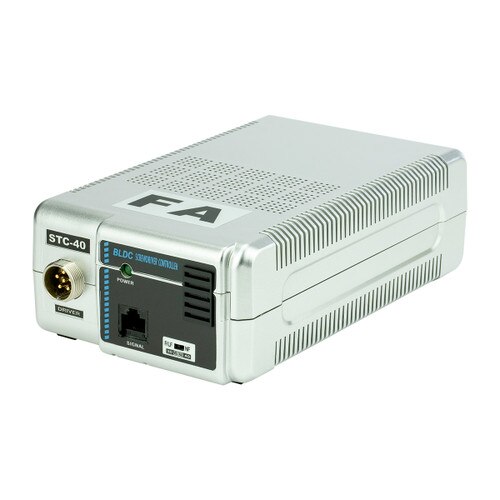

STC40-FA Transformer

Item #: 145869
Certifications:
$325.00

This tool typically ships within 3 - 5 weeks. For further information, call 408-684-1442.

The STC40-FA is a power supply that operates with select BFA-Series and NFA-Series robotic screwdrivers. It is a single READ MORE
Model:
STC40-FA
Item #:
145869
Tool Weight:
1.8 lb.
Tool Length:
7.5
Tool Width:
4.375
Tool Height:
2.375
Maximum Output:
10A
Output VDC:
30/40V
Input VAC:
110/230V
The STC40-FA is a power supply that operates with select BFA-Series and NFA-Series robotic screwdrivers. It is a single tool controller that is designed to operate at either 110v and 230v. The unit is can connect with the Scout screw counting system.
    • Operates with BFA-Series and NFA-Series robotic screwdrivers
    • Selectable output voltage.
    • Over Heat Protection (OHP) and Over Current Protection (OCP) protect drivers from damage or malfunction.
    • Temperature Detection powers down the unit and resets automatically when the unit restores to acceptable levels.
    • Switchable 110V & 230V input voltage. The unit will reset itself if the motor/current overload is too high.
    • Start & Stop Signal Output (for PLC).
    • The unit can be connected to the Scout (Screw Counter).
Operates with Robotic Screwdriver Models: BFA-Series and NFA-Series
