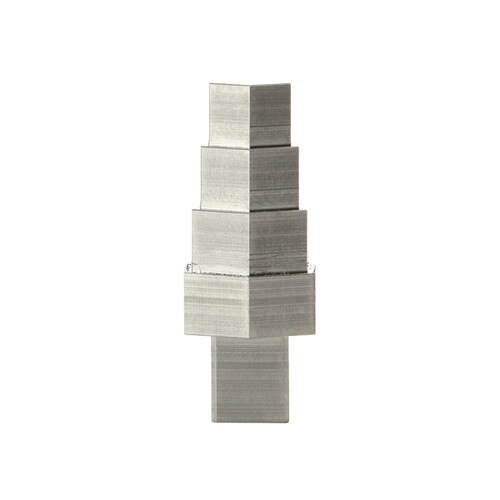

3/8" Hex Step Adapter (16, 14, 12 & 10mm)

Item #: 061541
$340.00
In Stock
When performing torque wrench calibration or testing, adapters are often needed, especially with torque wrenches that ha READ MORE

Specs

Model:
3/8" Hex Step Adapter (16, 14, 12 & 10mm)
Item #:
061541
Drive Size:
3/8" Sq. Dr.
Dimension A:
16 mm
Dimension B:
14 mm
Dimension C:
12 mm
Dimension D:
10 mm
When performing torque wrench calibration or testing, adapters are often needed, especially with torque wrenches that have open-end heads. Mountz’s calibration hex step adapter features four sizes, which will increase the productivity of your torque wrench calibration process. This adapter will make testing and calibration simple and efficient.
    • The hex adapter makes it easy and convenient to test a standard range of open-ended wrenches.
    • An adapter that features four size options increases productivity.
    • Improve wrench calibration process. Make it simple and efficient.
    • Square drive meets the ASME B107.300-2010 and ISO 6789-1:2017 standards
135 N.m is the maximum torque limit capacity for the 3/8 Sq. Drive Calibration Hex Step Adapter.
