ECD-5000U Controller (120V)

Item #: 313000
Certifications:

This tool typically ships within 4 - 5 weeks.

The ECD controller operates with only the EC-Series Smart Electric Screwdrivers (50000 models). It is a single tool c READ MORE

Request a Quote

Specs

Model:
ECD-5000U Controller (120V)
Item #:
313000
Tool Weight:
8.6 lbs.
Tool Length:
8
Tool Width:
7.5
Tool Height:
10.25
Output VDC:
DC38V 5A
Input VAC:
AC120VC, 50-60Hz

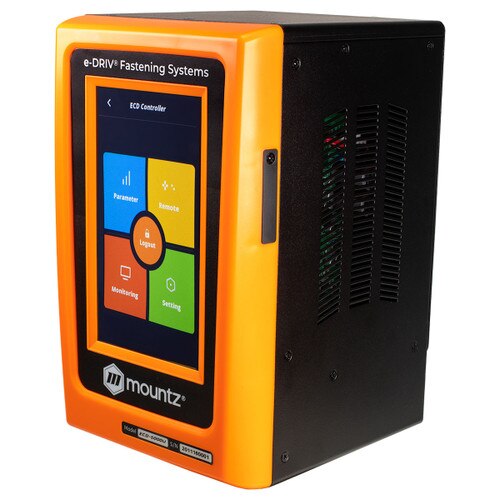

The ECD controller operates with only the EC-Series Smart Electric Screwdrivers (50000 models). It is a single tool controller that offers programmable speed, angle, auto-reverse, and soft start options. I/O interface for communication with external devices such as PLC.

MountzCom III Software

Software Download

For any technical support needs, please contact us.

Related Products

    • Operates with Electric Screwdriver Models: EC-Series (50000 models)
    • Preset selection capability: Front panel or 25P I/O
    • Angle Control: 0.1 - 10 turns
    • 15 Preset Parameters: Torque, Speed, Soft Start & Angle
    • Auto-detection of a connected electric screwdriver when the controller is powered on
    • Error display: Error code display (3 groups)
    • Fastening Quality Control: OK/NG monitoring of screw fastening by preset pattern of angle and/or time
    • PC based program for parameter settings, monitoring, and real-time output
    • Screw counting

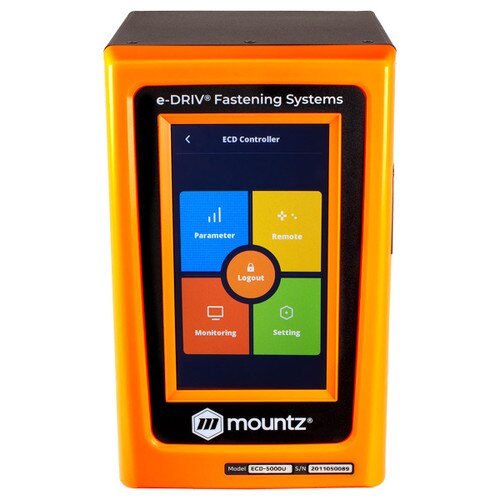

    • Front panel 7" Color LCD with touch screen

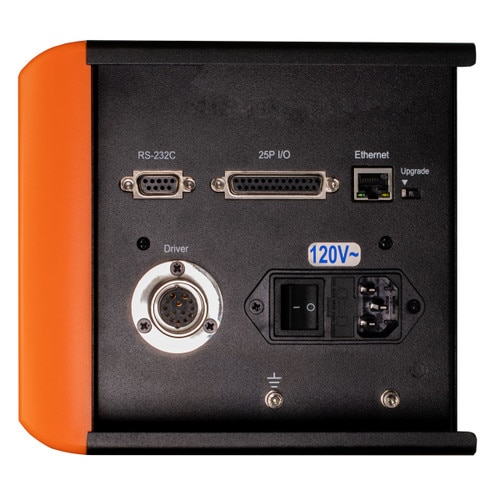

    • 8 Input & 8 Output flexible I/O (25P D-Sub)
    • Communication 1 x RS232C, 1 x Ethernet
    • Protocol: Modbus, Open Protocol
    • 4.0 MEMS system ready
    • SD Card data memory slot (memory card included)
    • Mounting bracket included
Operates with Electric Screwdriver Models: EC-Series (50000 models)
