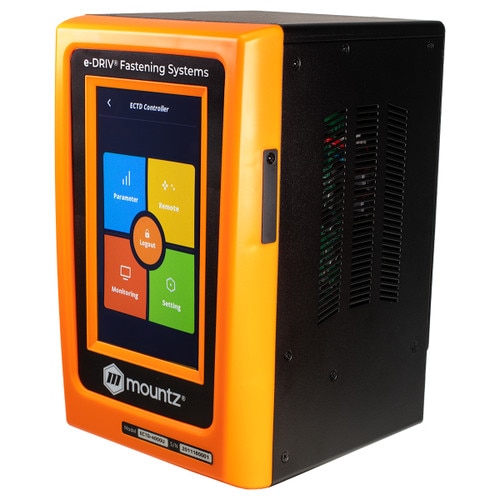

ECTD-5000E Controller (230V)

Item #: 313004
Certifications:
In Stock

The ECTD controller operates with only the ECT-Series Transducerized Smart Electric Screwdrivers. It is a single tool READ MORE

Request a Quote

Specs

Model:
ECTD-5000E Controller (230V)
Item #:
313004
Tool Weight:
8.6
Tool Length:
8
Tool Width:
7.5
Tool Height:
10.25
Output VDC:
DC38V 5A
Input VAC:
AC230VC, 50-60Hz

The ECTD controller operates with only the ECT-Series Transducerized Smart Electric Screwdrivers. It is a single tool controller that offers programmable speed, angle, auto-reverse and soft start options. I/O interface for communication with external devices such as PLC.

MountzCom III Software

Software Download

For any technical support needs, please contact us.

Related Products

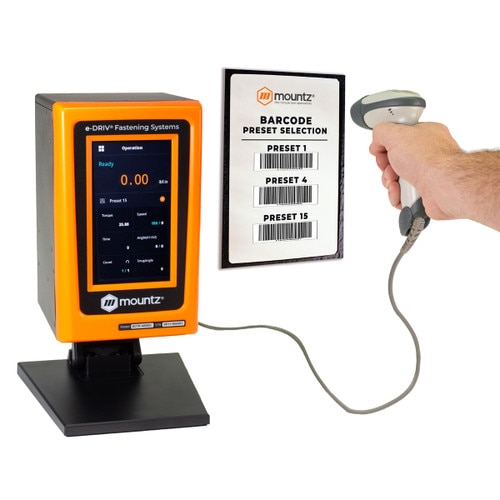

    • Preset selection capability: Front panel or 25P I/O
    • Angle Control: 0.1 - 10 turns

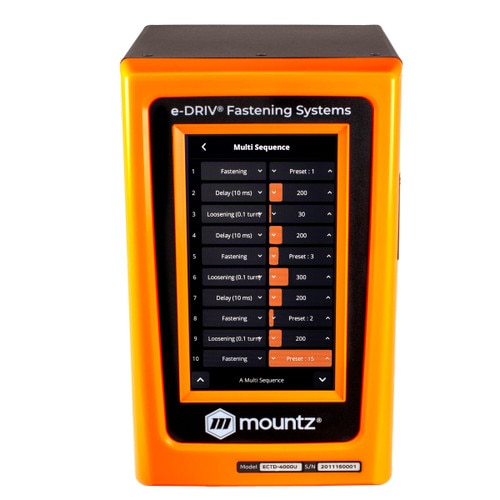

    • 15 Preset Parameters:Torque, Speed, Soft Start & Angle
    • Auto-detection of a connected electric screwdriver when the controller is powered on
    • Error display: Error code display (3 groups)
    • Fastening Quality Control: OK/NG monitoring of screw fastening by preset pattern of angle and/or time
    • PC based program for parameter settings, monitoring and real-time output
    • Screw counting

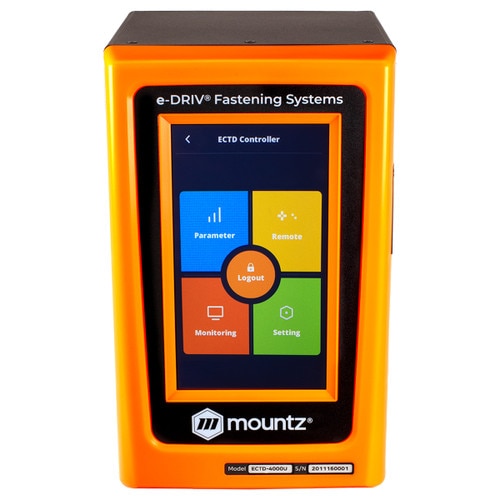

    • Front panel 7" Color LCD with touch screen

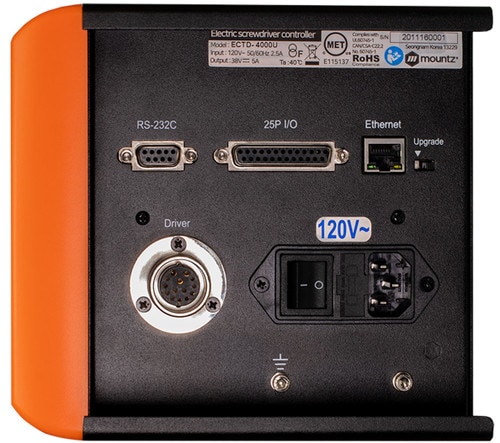

    • 8 Input & 8 Output flexible I/O (25P D-Sub)
    • Communication 1 x RS232C, 1 x Ethernet
    • Protocol: Modbus, Open Protocol
    • 4.0 MEMS system ready
    • SD Card data memory slot (memory card included)
    • Mounting bracket included
    Operates with Transducerized Electric Screwdriver Models: ECT-Series
