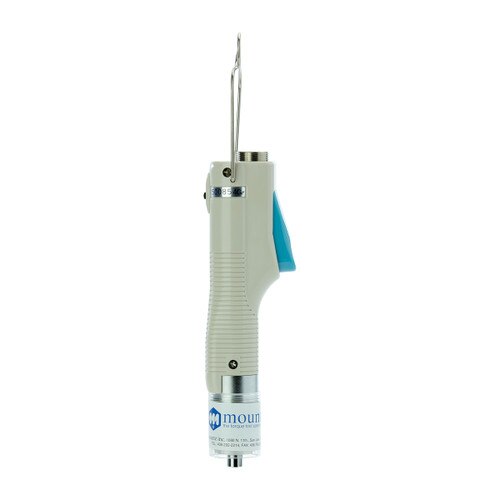

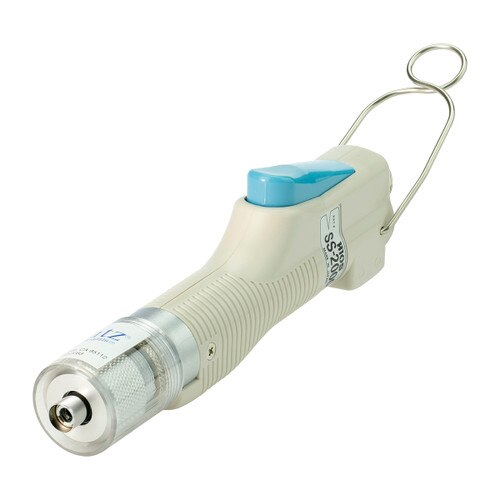

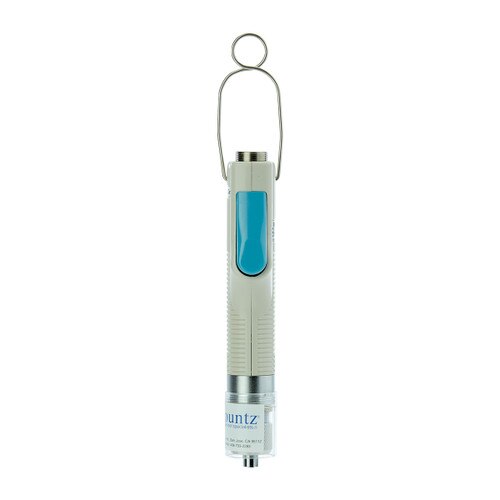

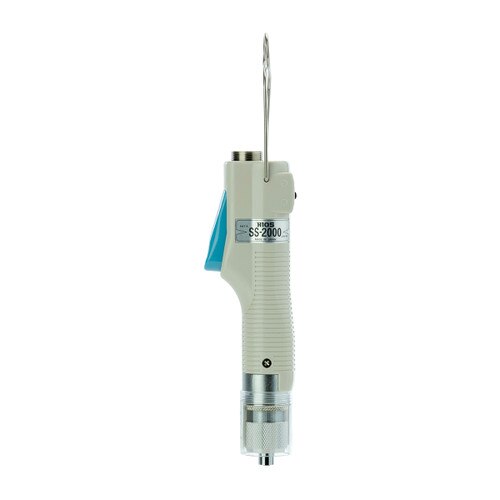

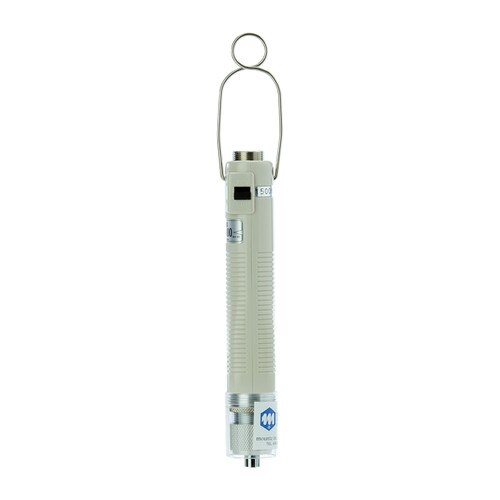

SS2000 Electric Screwdriver

Item #: 144022
$875.00
In Stock
The SS-Series is electric torque screwdriver designed for precision and accuracy. The unique soft-stop shock absorbing c READ MORE
NOTE: Requires Companion Items View

Calibration Options For This Product:

Add Calibration Service — $50.00

Preset Value is required

Torque Unit is required

Add Calibration Certificate

Time Interval is required

Item(s) successfully added to your cart.

F
T
T

Required Companion Items:

CLT-60 Transformer
Item #144360
$480.00
Item(s) successfully added to your cart.
STC30 Plus Transformer for SS-Series
Item #145684
$335.00
Item(s) successfully added to your cart.

Specs

Model:
SS2000
Item #:
144022
Drive Size:
4mm Hios Dr.
American:
0.17 - 1.7 lbf.in
S.I.:
2 - 20 cN.m
Metric:
0.2 - 2 kgf.cm
Tool Weight:
1.04 lb.
Tool Length:
10
Tool Height:
2.25
RPM High:
680
RPM Low:
490
Grip Dia:
1"
The SS-Series is electric torque screwdriver designed for precision and accuracy. The unique soft-stop shock absorbing clutch design is ideal for assembling shock sensitive components such as disk drives, plastics, and electronics. Ergonomically designed clutch and body case reduces impact and vibration transmitted in the screw fastening process, which delivers less torque reaction to operator.

  • Various models that range from 0.17 - 17.4 lbf.in.
  • Precision "Soft-Stop" clutch prevents shock to sensitive assemblies like disk drives, plastics, electronics, etc.
  • Ergonomically designed clutch and body case reduces impact and vibration transmitted in the screw fastening process.
  • Low voltage requirement offers superior life and safe operation.
  • Can be connected with the Scout Screw Counter.
  • Requires a Transformer (power supply).
  • External torque adjustment scale.
  • One way clutch - direct drive in the counter-clockwise direction for easy removal of tightened fasteners.
  • Available in Clean Room, Vacuum,ESD, Push-to-Start and Lever models.
Note! CR are Clean Room models. All Vacuum and Clean Room models are lever start. Requires a Transformer (power supply).
