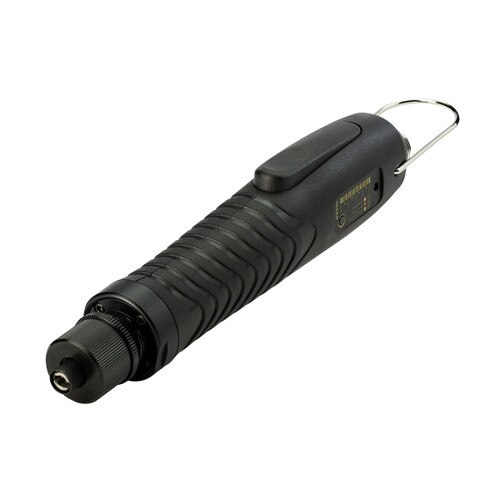

BF035 ESD Brushless Electric Screwdriver

Item #: 145844
Certifications:
$1,025.00
In Stock
The BF035 miniature soft stop models is designed with an unique "soft-stop" shock absorbing clutch that is ideal for fas READ MORE
NOTE: Requires Companion Items View

Calibration Options For This Product:

Add Calibration Service — $50.00

Preset Value is required

Torque Unit is required

Add Calibration Certificate

Time Interval is required

Item(s) successfully added to your cart.

F
T
T

Required Companion Items:

STC40 Transformer
Item #145754
$335.00
Item(s) successfully added to your cart.
Torque Cover for Mini BF-Series and EF-Series
Item #145773
$35.00
Item(s) successfully added to your cart.
Program Lock Key
Item #145774
$45.00
Item(s) successfully added to your cart.
FT-30D Mini Transformer
Item #145870
$235.00
Item(s) successfully added to your cart.

Specs

Model:
BF035 ESD
Item #:
145844
Drive Size:
4mm Hios Dr.
American:
0.17 - 3 lbf.in
S.I.:
2 - 34.3 cN.m
Metric:
0.2 - 3.5 kgf.cm
Tool Weight:
1.3 lb.
Tool Length:
13
Tool Height:
2.5
Minimum Adjustable RPM Range:
300
Maximum Adjustable RPM Range:
1100
Grip Dia:
1 1/5"
Requires Program Lock Key:
true
The BF035 miniature soft stop models is designed with an unique "soft-stop" shock absorbing clutch that is ideal for fastening shock delicate components such as disk drives, plastics, and electronics. The ergonomically designed soft stop clutch reduces impact and vibration transmitted in the screw fastening process, which delivers less torque reaction to operator. The electric screwdriver offers an adjustable speed setting. Designed for precision torque control the brushless motor design ensures durability and reduces the standard maintenance costs associated with brush type electric screwdrivers. The mini BF power tool is ESD certified, ensuring less than 1 Ohm at the bit tip. ESD management assures product quality, cost savings and a reduction in overall ESD failures. Manufacturing engineers involved with microelectronic products are aware of the importance of controlling Electrostatic Discharge (ESD) failures. Lapses in preventing the occurrence of electrostatic discharge can affect production yields, manufacturing costs, product quality, product reliability, reputation and profitability.

Related Products

  • Precision "Soft-Stop" clutch prevents shock to sensitive assemblies like disk drives, plastics, electronics, etc. (Lever Start)
  • Adjustable RPM setting on the tool.
  • One way clutch - direct drive in the counter-clockwise direction for easy removal of tightened fasteners.
  • High performance Swiss Maxon brushless motor design provides durability and reduces the standard maintenance costs for electric screwdrivers.
  • Designed for high production environments. Minimal heat build-up even when tool is operated continuously.
  • Over Heat Protection (OHP) and Over Current Protection (OCP) protect driver from damage or malfunction. Features a LED display that signals the tool status for the operator to view.
  • Can be connected with the Scout Screw Counter.
  • External torque adjustment scale.
  • Requires STC 40 Transformer (power supply). Mini BF-Series models are compatible with both STC40 and mini FT-30D transformer (power supply).
  • ESD safe tool prevents the occurrence of electrostatic discharge, which improves production yields, manufacturing costs, product quality, product reliability, reputation and profitability.
Requires Program Lock Key (Item # 145774) in order to adjust RPM & Soft Start Settings for select BF-Series models. Program Lock Key must be plugged into the STC40 Transformer or FT-30D Transformer.
