Legacy Product
This product has been replaced by: PTT-2000 Torque Analyzer

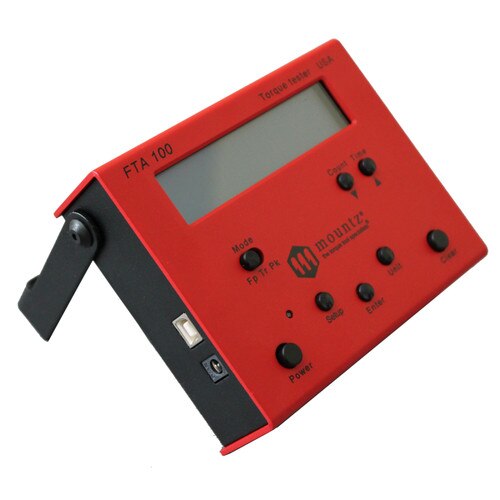

TorqueMate FTA 100

Item #: 072990

The Torquemate® FTA-100 product has been discontinued. You can access supporting product information from this page.< READ MORE

Specs

Model:
TorqueMate FTA 100
Item #:
072990

The Torquemate® FTA-100 product has been discontinued. You can access supporting product information from this page.

It was designed for torque testing and calibrating torque tools. The torque testing instrument featured the ability to count pulses, a key element for setting the torque on a pulse tool and evaluating the maintenance schedule for such tools. The FTA-100 unit displays both the peak torque reading and the number of pulses performed during a preset time frame to reach the final torque value.

Torque Analyzer Accuracy (connected with BMX, MTX or RTSX
System Accuracy ± 0.5% of reading from 20% to 100%
System Accuracy ± 1% of reading from 10% to 20%

Accuracy ± 0.5% of reading from 20% to 100% of full scale

    • Recommended for all pulse tools, hand screwdrivers, torque wrenches and power tools.
    • Selection of three operation modes: Track, Peak, and First Peak
    • Monitors torque and pulse count. The unit displays both the peak torque & the number of pulses performed during a preset time frame to reach the final torque value.
    • Seven units of torque measurements:
    • ozf.in, lbf.in, lbf.ft, cN.m, N.m, kgf.m, kgf.cm
    • USB interface to download readings in real-time.
    • Eight-digit display.
    • Includes NimH batteries and universal charger 100-240 VAC.
    • Over Current Protection (OCP) protects the unit from damage or malfunction.
    • Menu prompting calibration process.
    • Auto filter frequency selection based upon tool-type being used in Peak mode.
    • A torque sensor is needed to operate with the FTA unit. The torque tester only connects to MTX, BMX and RTSX torque sensors as the instrument does not have a built-in internal transducer.
    • Mountz Data Manager software for collecting & analyzing data.
