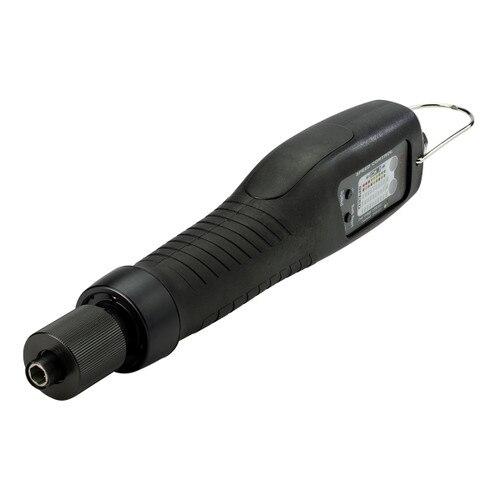

BF080P ESD Brushless Electric Screwdriver

Item #: 145794
Certifications:
$1,225.00
In Stock
The BF-Series standard models feature an adjustable RPM setting on the tool and a selectable Soft Start mode. Engineered READ MORE

Calibration Options For This Product:

Add Calibration Service — $50.00

Preset Value is required

Torque Unit is required

Add Calibration Certificate

Time Interval is required

Item(s) successfully added to your cart.

F
T
T

Required Companion Items:

Item #145611
$35.00
Item(s) successfully added to your cart.
Item #145754
$335.00
Item(s) successfully added to your cart.
Item #145774
$45.00
Item(s) successfully added to your cart.

Specs

Model:
BF080P ESD
Item #:
145794
Drive Size:
1/4" F/Hex
American:
0.9 - 6.9 lbf.in
S.I.:
9.8 - 78.4 cN.m
Metric:
1.5 - 8 kgf.cm
Tool Weight:
14.5 oz.
Tool Length:
9
Minimum Adjustable RPM Range:
670
Maximum Adjustable RPM Range:
1000
Grip Dia:
1 1/4"
Requires Program Lock Key:
true
The BF-Series standard models feature an adjustable RPM setting on the tool and a selectable Soft Start mode. Engineered for high volume manufacturing applications the brushless motor design ensures durability and reduces the standard maintenance costs associated with brush type electric screwdrivers. The BF power tool is ESD certified, ensuring less than 1 Ohm at the bit tip. ESD management assures product quality, cost savings and a reduction in overall ESD failures. Manufacturing engineers involved with microelectronic products are aware of the importance of controlling Electrostatic Discharge (ESD) failures. Lapses in preventing the occurrence of electrostatic discharge can affect production yields, manufacturing costs, product quality, product reliability, reputation and profitability.
  • Adjustable RPM setting on the tool.
  • A selectable Soft Start mode from 0.2-0.6 seconds.
  • High performance Swiss Maxon brushless motor design provides durability and reduces the standard maintenance costs for electric screwdrivers.
  • Designed for high production environments. Minimal heat build-up even when tool is operated continuously.
  • Over Heat Protection (OHP) and Over Current Protection (OCP) protect driver from damage or malfunction. Features a LED display that signals the tool status for the operator to view.
  • Can be connected with the Scout Screw Counter.
  • External torque adjustment scale.
  • Requires STC 40 Transformer (power supply).
  • ESD safe tool prevents the occurrence of electrostatic discharge, which improves production yields, manufacturing costs, product quality, product reliability, reputation and profitability.
Requires Program Lock Key (Item # 145774) in order to adjust RPM & Soft Start Settings for select BF-Series models. Program Lock Key must be plugged into the STC40 Transformer.
