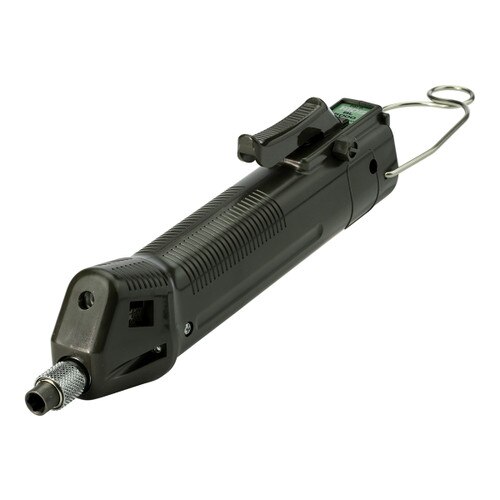

BL-5000X-OPC Brushless Electric Screwdriver

Item #: 144389

Please contact us for availability. 408-684-1442

The HIOS BL-5000X ESD-OPC is a brushless electric screwdriver designed to operate with the BLOP-STC3 screw counter. The READ MORE
NOTE: Requires Companion Items View
Request a Quote

Required Companion Items:

BLOP-STC3 Screw Counter Transformer
Item #144175
Request a Quote
BLC-45 Transformer
Item #144268
Request a Quote
BLC-70 Transformer
Item #144805
Request a Quote

Specs

Model:
BL-5000X-OPC
Item #:
144389
Drive Size:
1/4" F/Hex
American:
1.7 - 10 lbf.in
S.I.:
20 - 120 cN.m
Metric:
2 - 12 kgf.cm
Tool Weight:
12 oz.
Tool Length:
8
RPM High:
900
RPM Low:
590
Grip Dia:
1 1/4"
The HIOS BL-5000X ESD-OPC is a brushless electric screwdriver designed to operate with the BLOP-STC3 screw counter. The power tool features a robust brushless motor design that provides durability and longer-lasting service life than their counterparts, brush-type electric screwdrivers. There is minimal heat build-up while operating the tool continuously. It maintains a clean environment without emitting carbon particles and significantly reduces maintenance costs. High-speed rotation shortens the tightening time and improves work efficiency. The brushless electric screwdriver automatically shuts off once the preset torque is achieved and enhances product quality through precision torque control and user comfort.

Related Products

    • Design to operate with BLOP-STC3 screw counter. The error-proofing device detects and eliminates costly screw-fastening errors. It monitors and identifies missing screws, cross-threading, omissions, unfinished rundowns.
    • High Power brushless motor design that provides durability and longer-lasting service life than a brush type electric screwdriver.
    • Accurate torque control provides precise and controlled fastening with an automatic shut-off clutch.
    • Minimal heat build-up while operating the tool continuously.
    • Precision automatic shut-off clutch once preset torque is achieved.
    • High-speed rotation shortens the tightening time and improves work efficiency.
    • Maintains a clean environment without emitting carbon particles and significantly reduce maintenance costs
    • Compact size with an ergonomic grip.
    • Torque adjustment scale.
    • Requires both a screw counter and transformer (power supply): BLOP-STC3 screw counter and BLC-70 or BLC-45.
    • Two-way Start System (Switchable between Lever Start and Push-to-Start)
Requires a transformer (power supply): BLOP-STC3 screw counter.
