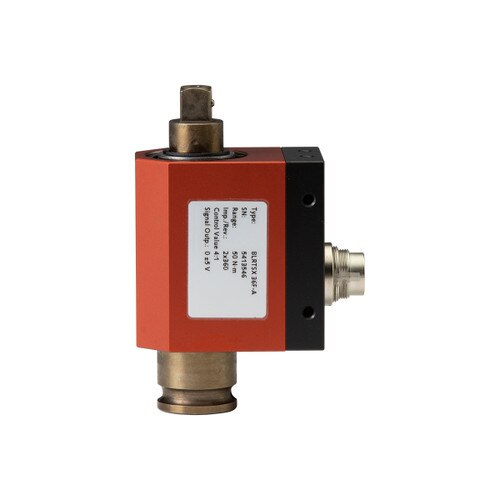

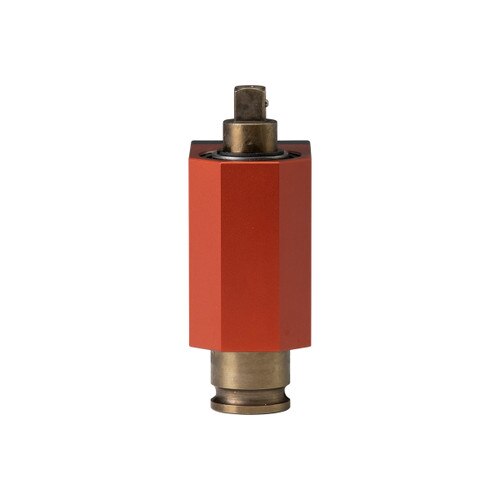

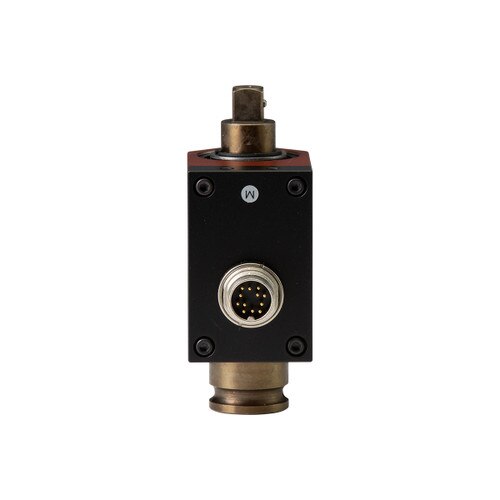

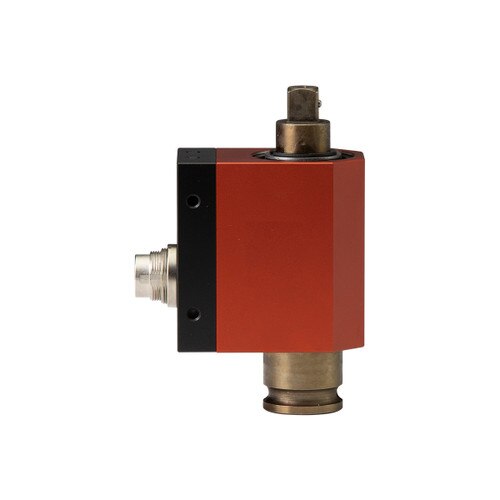

BLRTSX36F-A Rotary Torque Sensor

Item #: 170254
Certifications:
$5,045.00
In Stock
The Mountz brushless rotary torque & angle sensors an ideal torque-measuring solution for applications where accuracy an READ MORE

Calibration Options For This Product:

Add Calibration Certificate — $0.00

Time Interval is required

Item(s) successfully added to your cart.

T
F
T

You will also need

Item #072001
$335.00
Item(s) successfully added to your cart.
Model:
BLRTSX36F-A
Item #:
170254
American:
4 - 36 lbf.ft
S.I.:
5 - 50 N.m
Metric:
0.6 - 5 kgf.m
Input Drive:
3/8 F/Sq
Output Drive:
3/8 M/Sq
Tool Length:
4
Tool Width:
1.5
Tool Height:
2
Cal Cert Options Data Set:
Supplied with a Free ISO 17025 Certification of Calibration
The Mountz brushless rotary torque & angle sensors an ideal torque-measuring solution for applications where accuracy and reliability rank paramount. Can be used for testing real-time torque or for checking the breakaway torque (first movement) of a fastener.
Accuracy ± .2% of full scale
  • Non-contact signal transfer and maintenance free.
  • Angle Output: 2-channel quadrature, 360 pulses per rotation.
  • Ability to measure the rotation angle of a fastener. Joint rate & breakaway torque can be measured too.
  • The common brush bounce that plagues the accuracy testing of pulse tools is cured when using a brushless rotary transducer.
  • Compact design & bi-directional.
  • For use with most power tools, high RPM tools, or rotational measurement applications.
  • Features ARCII technology, an instant auto-recognition system of the BLRTSX-A connected to the PTT or LTT.
This is the stand alone accuracy statement for the BLRTSX -A torque sensor. When the torque sensor is coupled with a Mountz torque analyzer, there is a system accuracy. Review the system accuracy listed with each torque analyzer (PTT or LTT).

WARNING! Not recommended for impact wrenches.
