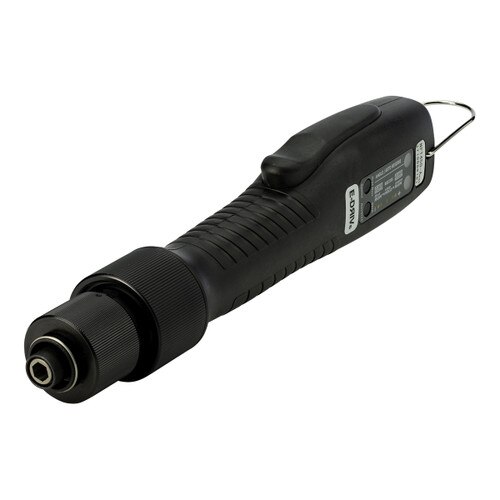

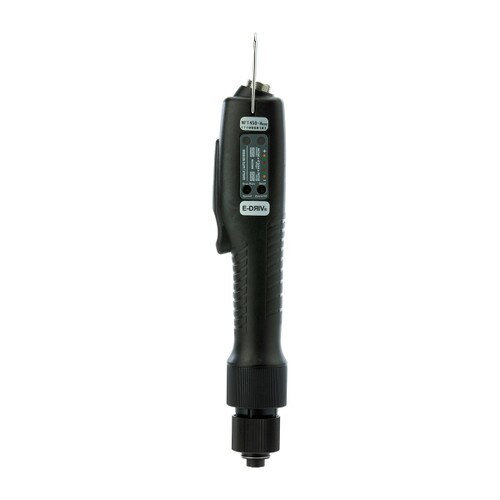

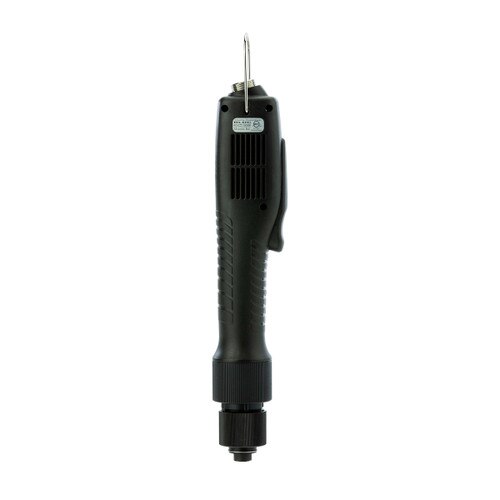

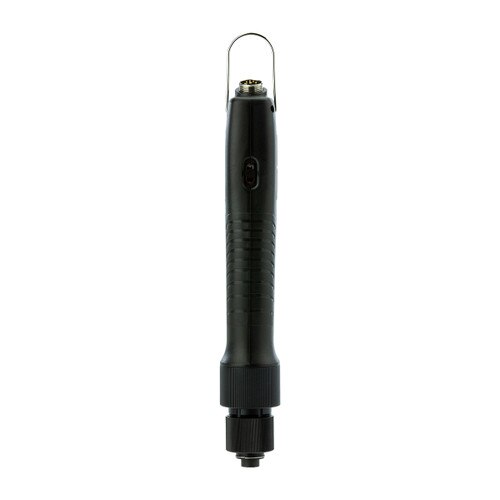

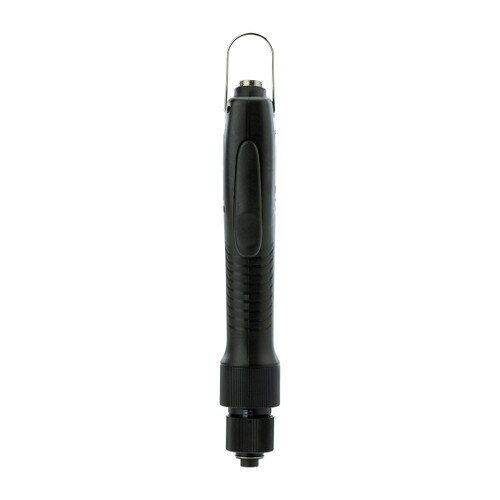

NFT450-A ESD Brushless Electric Screwdriver

Item #: 145860
Certifications:
$1,805.00
In Stock
The NF-Series angle and auto reverse models is designed for installing heli-coil screw thread inserts, as well as light READ MORE
NOTE: Requires Companion Items View

Calibration Options For This Product:

Add Calibration Service — $50.00

Preset Value is required

Torque Unit is required

Add Calibration Certificate

Time Interval is required

Item(s) successfully added to your cart.

F
T
T

Required Companion Items:

STC40 Transformer
Item #145754
$335.00
Item(s) successfully added to your cart.
Torque Cover for NF-Series
Item #145955
$35.00
Item(s) successfully added to your cart.

Specs

Model:
NFT450-A ESD
Item #:
145860
Drive Size:
1/4" F/Hex
American:
6.1 - 39 lbf.in
S.I.:
68.7 - 441 cN.m
Metric:
7 - 45 kgf.cm
Tool Weight:
18.4 oz.
Tool Length:
10.25
Minimum Adjustable RPM Range:
300
Maximum Adjustable RPM Range:
600
Grip Dia:
1 1/3"
Requires Program Lock Key:
true
The NF-Series angle and auto reverse models is designed for installing heli-coil screw thread inserts, as well as light tapping and gauging applications. The assembly power tools feature the brushless motor technology and is engineered for precision torque control. These installation tools feature the ability to set and adjust the speed, the rotation (number of turns), as well as program an auto reverse function. Using the assembly tool in conjunction with a torque arm enhances the installation process. The electric screwdriver offers an adjustable speed setting. The NF power tool is ESD certified, ensuring less than 1 Ohm at the bit tip. ESD management assures product quality, cost savings and a reduction in overall ESD failures.Manufacturing engineers involved with microelectronic products are aware of the importance of controlling Electrostatic Discharge (ESD) failures. Lapses in preventing the occurrence of electrostatic discharge can affect production yields, manufacturing costs, product quality, product reliability, reputation and profitability.

Related Products

  • Time Angle Control & Auto Reverse model: Set the start and stop point by angle control within a range of 0.25 - 30 turns. Also set the “Stop Holding Time” within a range of 0.1 to 6 seconds.
  • Adjustable RPM setting on the tool.
  • High performance Swiss Maxon brushless motor design provides durability and reduces the standard maintenance costs for electric screwdrivers.
  • Designed for high production environments. Minimal heat build-up even when tool is operated continuously.
  • Over Heat Protection (OHP) and Over Current Protection (OCP) protect driver from damage or malfunction. Features a LED display that signals the tool status for the operator to view.
  • Can be connected with the Scout Screw Counter.
  • External torque adjustment scale.
  • Requires STC40 transformer (power supply).
  • ESD safe tool designed and prevent the occurrence of electrostatic discharge, which improves production yields, manufacturing costs, product quality, product reliability, reputation and profitability.
Requires STC40 transformer (power supply).
