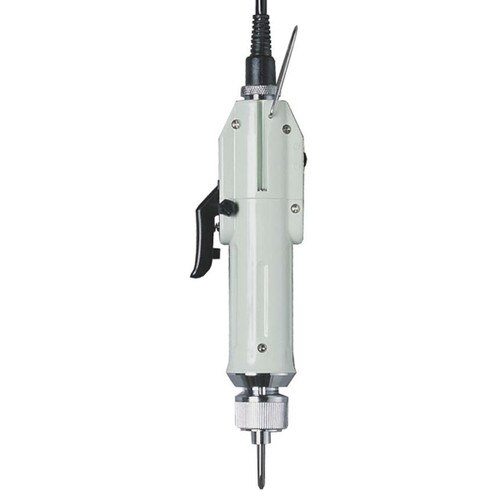

CL3000 Electric Screwdriver

Item #: 144106
$590.00

This tool typically ships within 4 - 6 weeks. For further information, call 408-684-1442.

The CL-Series electric torque screwdriver by HIOS is designed for heavy-duty production and delivers reliability as well READ MORE

Calibration Options For This Product:

Add Calibration Service — $50.00

Preset Value is required

Torque Unit is required

Add Calibration Certificate

Time Interval is required

Item(s) successfully added to your cart.

F
T
T

Required Companion Items:

Item #144360
$480.00
Item(s) successfully added to your cart.
Item #145683
$335.00
Item(s) successfully added to your cart.

Specs

Model:
CL3000
Item #:
144106
Drive Size:
4mm Hios Dr.
American:
0.3 - 1.7 lbf.in
S.I.:
3 - 20 cN.m
Metric:
0.3 - 2 kgf.cm
Tool Weight:
12.4 oz.
Tool Length:
7.25
RPM High:
1000
RPM Low:
670
Grip Dia:
1 1/4"
The CL-Series electric torque screwdriver by HIOS is designed for heavy-duty production and delivers reliability as well as precision torque. The full auto shut-off clutch on this electric screwdriver completely stops the bit from turning once the torque setting is reached. This feature protects the fastener from being damaged by the electric screwdriver's bit. The HIOS electric screwdriver is a smart choice for operations requiring a wide range of torque values. Common usages for this electric screwdriver include demanding assembly-fastening applications that require torque control, screw counting functionality and ESD protection.
  • Ensures accuracy in fastening with precision automatic shut-off clutch once preset torque is achieved.
  • Low DC voltage for safe operation and long life.
  • Precision automatic shut-off clutch once preset torque is achieved.
  • Compact size with a grip designed for operator comfort.
  • Can be connected with the Scout Screw Counter.
  • Requires a Transformer (power supply) like STC30 PlusCLT-60 or CLT-70STC3.
  • External torque adjustment scale.
  • Accurate torque control provides precise and controlled fastening with automatic shut-off clutch.
Requires a Transformer (power supply) like STC30 PlusCLT-60 or CLT-70STC3

Can use a torque adjustment nut (Item # 060012) and set screw (Item # 220100) to preset the driver to a specific torque.
