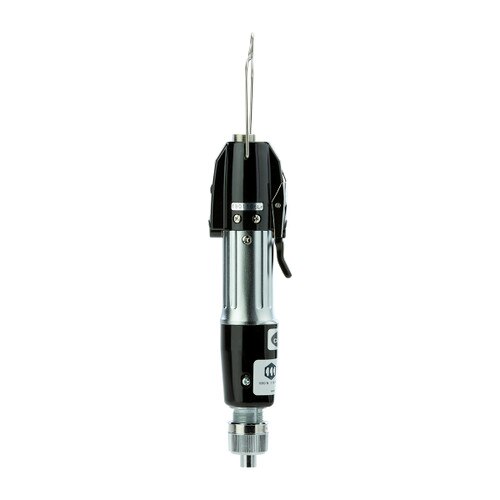

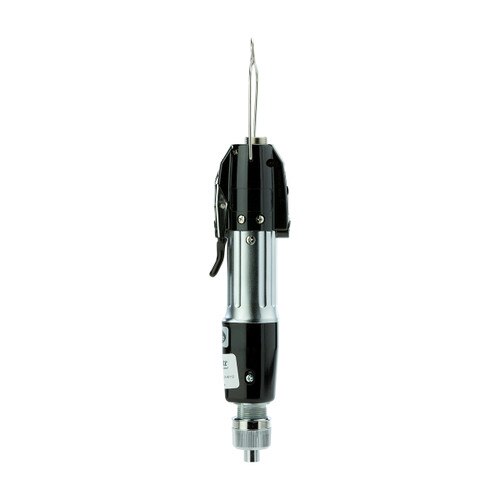

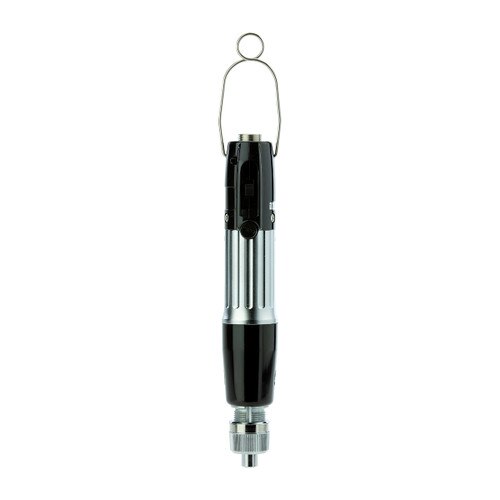

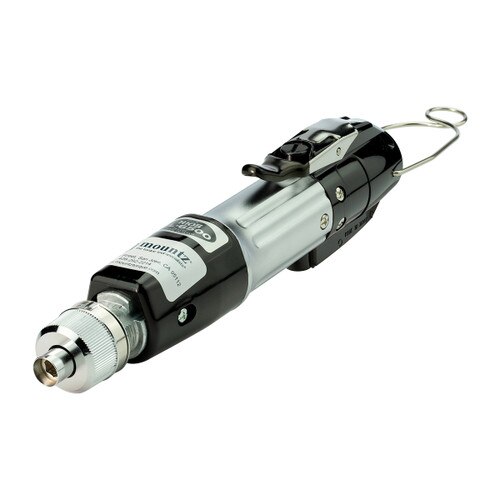

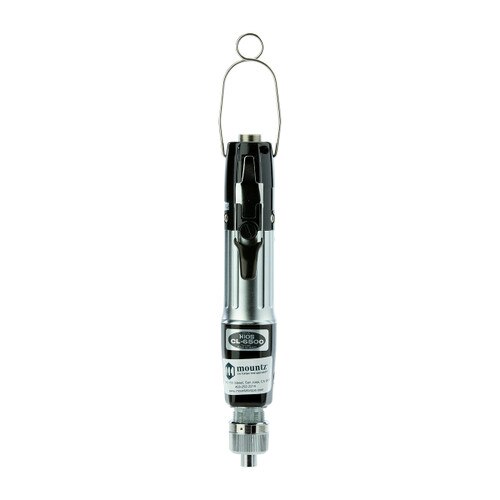

CL6500 Electric Screwdriver

Item #: 144121
$725.00
In Stock
The CL-Series electric torque screwdriver by HIOS is designed for heavy-duty production and delivers reliability as well READ MORE
NOTE: Requires Companion Items View

Calibration Options For This Product:

Add Calibration Service — $60.00

Preset Value is required

Torque Unit is required

Add Calibration Certificate

Time Interval is required

Item(s) successfully added to your cart.

F
T
T

Required Companion Items:

STC30 Plus Transformer
Item #145683
$360.00
Item(s) successfully added to your cart.

Specs

Model:
CL6500
Item #:
144121
Drive Size:
1/4" F/Hex
American:
2.6 - 14 lbf.in
S.I.:
30 - 160 cN.m
Metric:
3 - 16 kgf.cm
Tool Weight:
23.3 oz.
Tool Length:
9.25
RPM High:
900
RPM Low:
600
Grip Dia:
1 1/2"
The CL-Series electric torque screwdriver by HIOS is designed for heavy-duty production and delivers reliability as well as precision torque. The full auto shut-off clutch on this electric screwdriver completely stops the bit from turning once the torque setting is reached. This feature protects the fastener from being damaged by the electric screwdriver's bit. The HIOS electric screwdriver is a smart choice for operations requiring a wide range of torque values. Common usages for this electric screwdriver include demanding assembly-fastening applications that require torque control, screw counting functionality and ESD protection.

    Fastening Process Improvement:

    • Fastening Brush type screwdrivers for tightening small screws, nuts and bolts. Suitable for micro and low torque applications.
    • Designed to increase production rates and provide precision torque control the electric screwdriver automatically stops when the preset torque has been reached.
    • The external torque adjustment scale allows team leaders to quickly and easily adjust torque.

    Error-Proofing:

    • Can be connected with the Scout Screw Counter for an additional layer of error-proofing. The Scout detects and eliminates costly screw-fastening errors. The error-proofing device monitors and identifies missing screws, cross-threading, omissions, and unfinished rundowns.

    Ergonomics:

    • Features a lightly knurled non-slip grip that reduces discomfort, fatigue, and risk of injury.

    Set-Up:

Requires a Transformer (power supply) like STC30 Plus, CLT-60 or CLT-70STC3.
