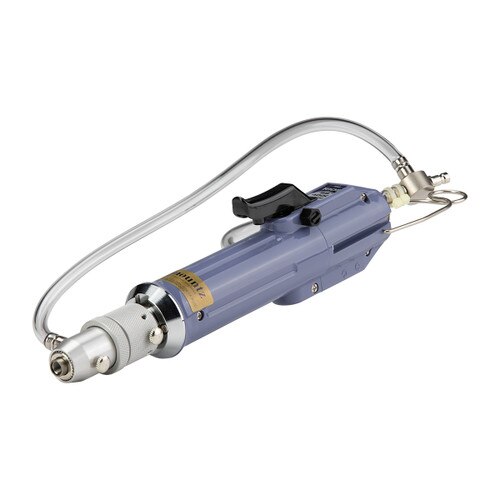

SSQ4000XCR Electric Screwdriver

Item #: 144224
$885.00

This tool typically ships within 3-4 weeks. For further information, call 408-684-1442.

TheSSQ4000XCR is a cleanroom electric torque screwdriver that meet stringent cleanliness requirements. The unique soft-s READ MORE

Calibration Options For This Product:

Add Calibration Service — $35.00

Preset Value is required

Torque Unit is required

Add Calibration Certificate

Time Interval is required

Item(s) successfully added to your cart.

F
T
T

You will also need

Item #144296
$1150.00
Item(s) successfully added to your cart.
Item #144360
$410.00
Item(s) successfully added to your cart.
Item #145684
$295.00
Item(s) successfully added to your cart.
Model:
SSQ4000XCR
Item #:
144224
Drive Size:
1/4" F/Hex
American:
0.9 - 3.9 lbf.in
S.I.:
10 - 45 cN.m
Metric:
1.5 - 4.5 kgf.cm
Tool Weight:
14.4 oz.
Tool Length:
7.75
RPM High:
1000
RPM Low:
690
Grip Dia:
1 1/4"
TheSSQ4000XCR is a cleanroom electric torque screwdriver that meet stringent cleanliness requirements. The unique soft-stop shock-absorbing clutch design is ideal for assembling shock-sensitive components such as disk drives, plastics, and electronics. Ergonomically designed clutch and body case reduce impact and vibration transmitted in the screw fastening process, which delivers less torque reaction to the operator.
    • Precision "Soft-Stop" clutch prevents shock to sensitive assemblies like disk drives, plastics, electronics, etc.
    • Ergonomically designed clutch and body case reduce impact and vibration transmitted in the screw fastening process.
    • The production tool is designed to increase productivity and enhance product quality through precision torque control and user comfort
    • Can be connected with the Scout Screw Counter
    • Requires a Transformer (power supply) like the STC30 Plus for SS-SeriesCLT-60 or CLT-70STC3.
    • Ensures accuracy in fastening with precision automatic shut-off clutch once preset torque is achieved. External torque adjustment scale
    • One-way clutch - direct drive in the counter-clockwise direction for easy removal of tightened fasteners.
    • Cleanroom electric torque screwdriver that meet stringent cleanliness requirements
Requires a Transformer (power supply) like the STC30 Plus for SS-SeriesCLT-60 or CLT-70STC3.

Clean Room models are lever start tools.
