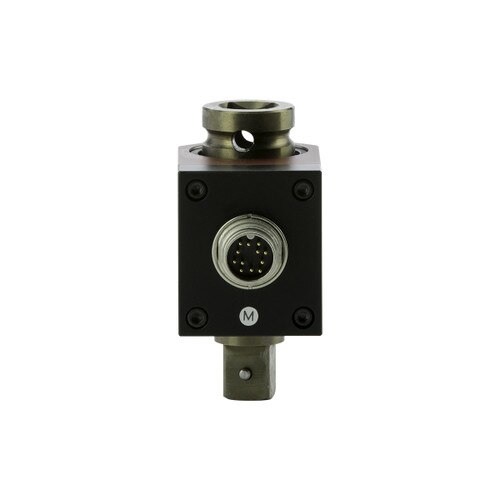

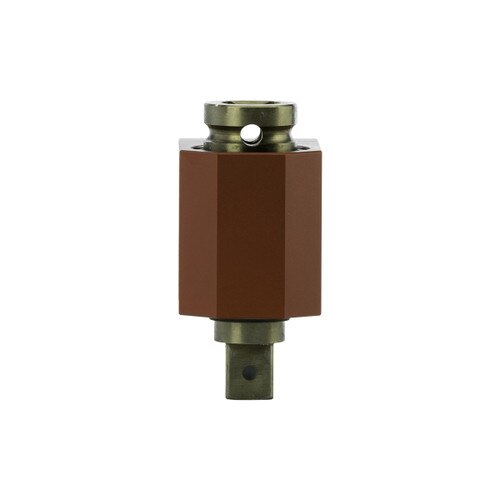

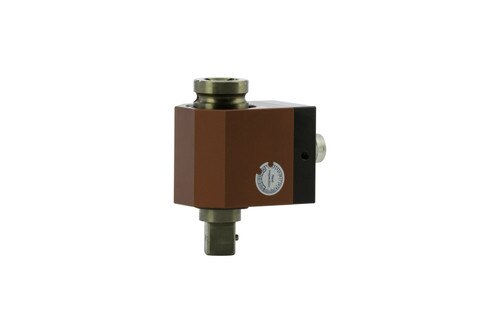

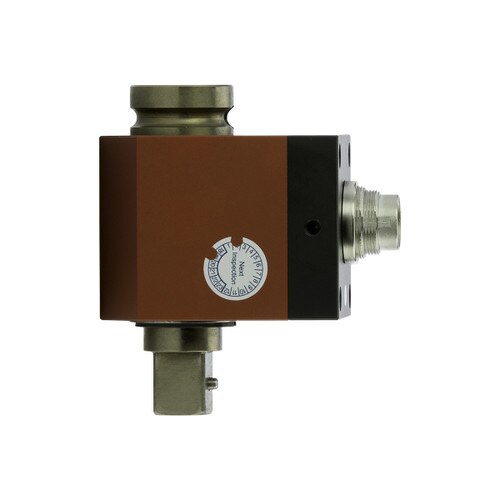

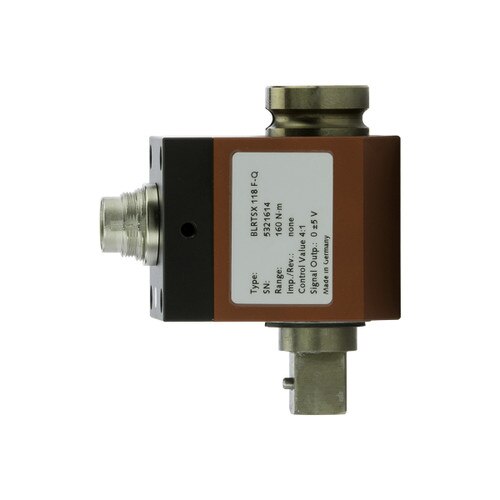

BLRTSX118F Brushless Rotary Torque Sensor

Item #: 170238
Certifications:
$4,625.00
In Stock
The Mountz brushless rotary torque sensors are an ideal torque-auditing tool for testing the actual torque being applied READ MORE
NOTE: Requires Companion Items View

Calibration Options For This Product:

Add Calibration Certificate — $.00

Time Interval is required

Item(s) successfully added to your cart.

T
F
T

Required Companion Items:

Cable BLRTSX to PTT and LTT
Item #072001
$415.00
Item(s) successfully added to your cart.

Specs

Model:
BLRTSX118F
Item #:
170238
American:
12 - 118 lbf.ft
S.I.:
16 - 160 N.m
Metric:
1.7 - 16.3 kgf.m
Input Drive:
1/2 F/Sq
Output Drive:
1/2 M/Sq
Tool Length:
3.1
Tool Width:
1.5
Tool Height:
2.3
Cal Cert Options Data Set:
Supplied with a Free ISO 17025 Certification of Calibration
The Mountz brushless rotary torque sensors are an ideal torque-auditing tool for testing the actual torque being applied on the assembly application. Particularly valuable for measuring torque on pulse tools with strong vibrations. By connecting a rotary torque sensor between an electric or pneumatic tool and assembly application, you can monitor the torque being applied from the tool to a fastener or bolt.
Accuracy ± .2% of full scale

Accessories

Torque Analyzers
PTT
LTT

Cables for connecting BLRTSX to Torque Analyzers
PTT
LTT

  • The brushless rotary torque sensor is a compact design & bi-directional.
  • The common brush bounce that plagues the accuracy testing of pulse tools is cured when using a BLRTSX.
  • Bi-directional.
  • Non-Contact signal transfer and maintenance free.
  • For use with most power tools, high RPM tools, or rotational measurement applications.
  • Features ARCII technology, an instant auto-recognition system of the BLRTSX connected to the PTT or LTT.
This is the stand alone accuracy statement for the BLRTSX torque sensor. When the torque sensor is coupled with a Mountz torque analyzer, there is a system accuracy. Review the system accuracy listed with each torque analyzer (PTT or LTT).

WARNING! Not recommended for impact wrenches.
