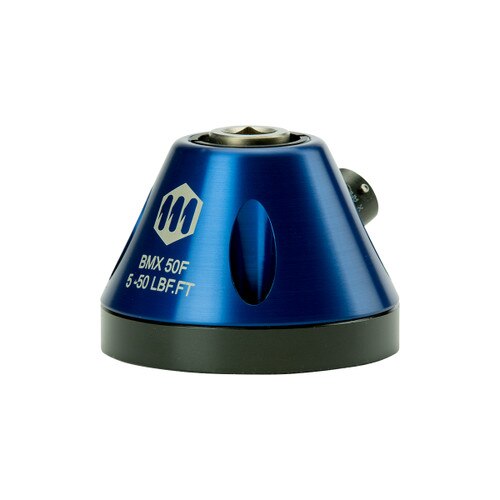

BMX50F Torque Sensor

Item #: 077010
Certifications:
$2,475.00
In Stock

The versatile torque sensor is used in conjunction with a Mountz torque tester to meet the demands of testing multipl READ MORE

Calibration Options For This Product:

Add Calibration Certificate — $.00

Time Interval is required

Note: If you'd like to engrave multiple items with different engraving text you will need to add them to the cart individually. Engraved tools and engraving fees are non-refundable.

View Engraving Location

Item(s) successfully added to your cart.

T
F
T

Required Companion Items:

Item #072002
$350.00
Item(s) successfully added to your cart.

Specs

Model:
BMX50F
Item #:
077010
Drive Size:
3/8" F/Sq
American:
5 - 50 lbf.ft
S.I.:
6.8 - 67.8 N.m
Metric:
0.7 - 6.9 kgf.m
Tool Width:
2.75
Tool Height:
2.1
Cal Cert Options Data Set:
Supplied with a Free ISO 17025 Certification of Calibration

The versatile torque sensor is used in conjunction with a Mountz torque tester to meet the demands of testing multiple micro torque ranges for various torque tools used in production, maintenance, and calibration labs. The torque sensor is a bench-mounted calibration instrument designed for torque wrench calibration, torque screwdriver calibration, and electric and pneumatic screwdriver calibration. Controlling torque is quintessential for companies to ensure their products' quality, safety, and reliability aren't compromised.

Torque Sensor Accuracy
System Accuracy ± 0.5% of reading from 20% to 100% when connected to an LTT or PTT
System Accuracy ± 1% of reading from 10% to 20% when connected to an LTT or PTT

Accuracy ± .25% of reading

Accessories

Torque Analyzers
PTT
LTT

Cables for connecting BMX to Torque Analyzers
PTT
LTT

Accessories
Mounting Bracket
Multiplexer and Bar Code Reader
Calibration Hex Step Adapters
Run Down Adapters

    Calibrate, Validate, and Maintain Your Tools:

    • Torque sensor for testing and calibrating hand screwdrivers, torque wrenches, and power assembly tools. Ensure proper torque is applied and reduce manufacturing errors on your assembly line.
    • Validate that a tool is still in calibration with a torque verification process.
    • Mountable sensor for flexible placement options and keep it securely mounted to a test lab station or mobile calibration cart. Keeping the sensor in a stable position ensures the torque measurement accuracy during operation.
    • A versatile instrument that allows you to expand torque testing capacity.
    • Female square drive.
    • Bi-directional measurement operation.


    Connectability:

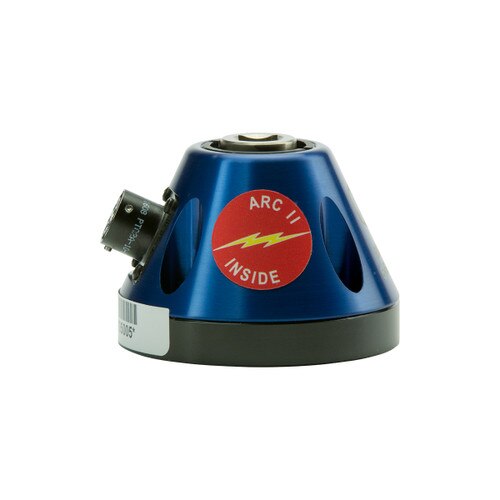

    • Features ARC II technology, an instant auto-recognition system of the BMX connected to the PTT or LTT torque testers.
    • Easily connect up to 4 torque sensors using the Mountz multiplexer.


    Mountz Quality Standards:

    • ISO 17025 calibration certificate included with purchase.

This is the stand alone accuracy statement for the BMX torque sensor. When the torque sensor is coupled with a Mountz torque analyzer, there is a system accuracy. Review the system accuracy listed with each torque analyzer (PTT or LTT).

WARNING! Always use a run down adapter when testing power tools.
